Drive technology Power supply 24 V DC

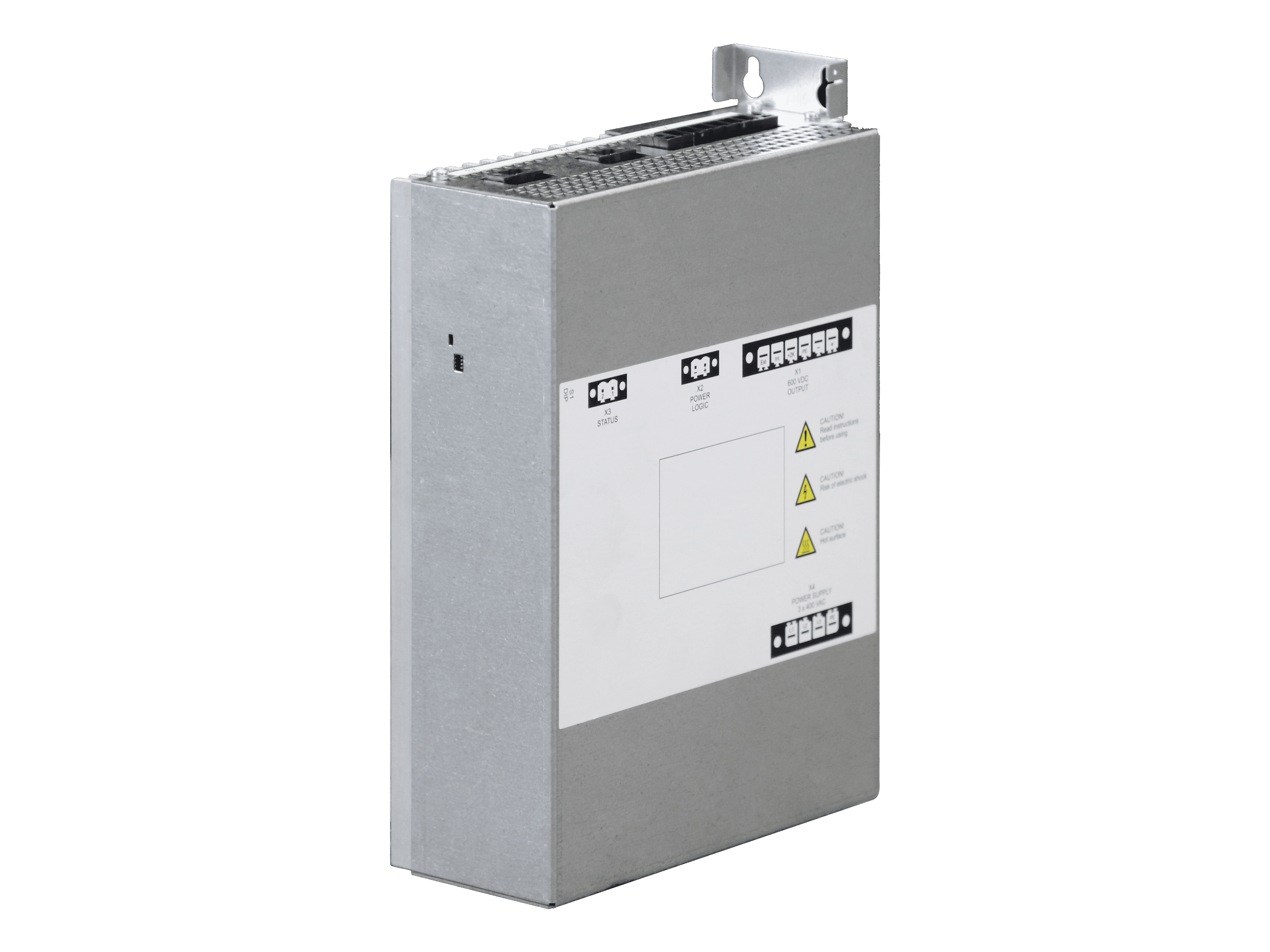

Power supply 24 V DC (PS10024A01S00)

The innovative power supply module PS10024A01S00 with active PFC is connected to a single-phase 1 x 230 V AC (85 V to 264 V) power supply and is designed for professional OEM applications on mechanical engineering. The power supply modul provide a DC voltage of 24 V DC (adjustable: 22.5 V to 28.5 V).

Technical Data

All data at a glance

Power supply 24 V DC
Conformity
  • EMC Directive: 2006/42/EU
  • LVD: 2014/30/EU
Mounting
  • in control cabinet on DIN rail NS 35 to EN 60715
Cooling type
  • natural convection
Input data
Mains Connection
  • Input voltage 1 x 230 V AC
  • Efficiency > 90 %
Output data
DC-Output
  • Output voltage 24 V DC
  • Continuous output current 10 A
  • Regenerative feedback to 35 V DC
