Netzteil 650 V DC

Drive technology 650 V DC

Power supply module 650 V DC

The innovative power supply module PSxx650A00S00 with active PFC is connected to a three-phase 400 V mains supply and is designed for professional OEM applications on mechanical engineering. The power supply modul provide a DC voltage of 650 V DC and replace the previous solution with transformer and leads to a place and costs saving.

Technical Data

All data at a glance

Power supply module 650 V DC
Conformity
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
Mounting
  • In control cabinet; screw fastener on electrically conductive and earthing mounting plate
Cooling type
  • Natural convection
Brake chopper
  • with integrated braking resistor; connection of external braking resistor possible
Input data
Power supply
  • Input voltage 3 x 400 V AC
Logic supply
  • Input voltage 24 V DC
Output data
DC-Output (DC-bus)
  • Output voltage 650 V DC
  • Continuous power output 8 kW
  • Peak power output (t < 8 s) 16 kW
I/O-Interface
  • 1 Digital 24V-Output for diagnosis

Similar Products

Products that might also interest you

2021-07-07T11:01:23+02:00

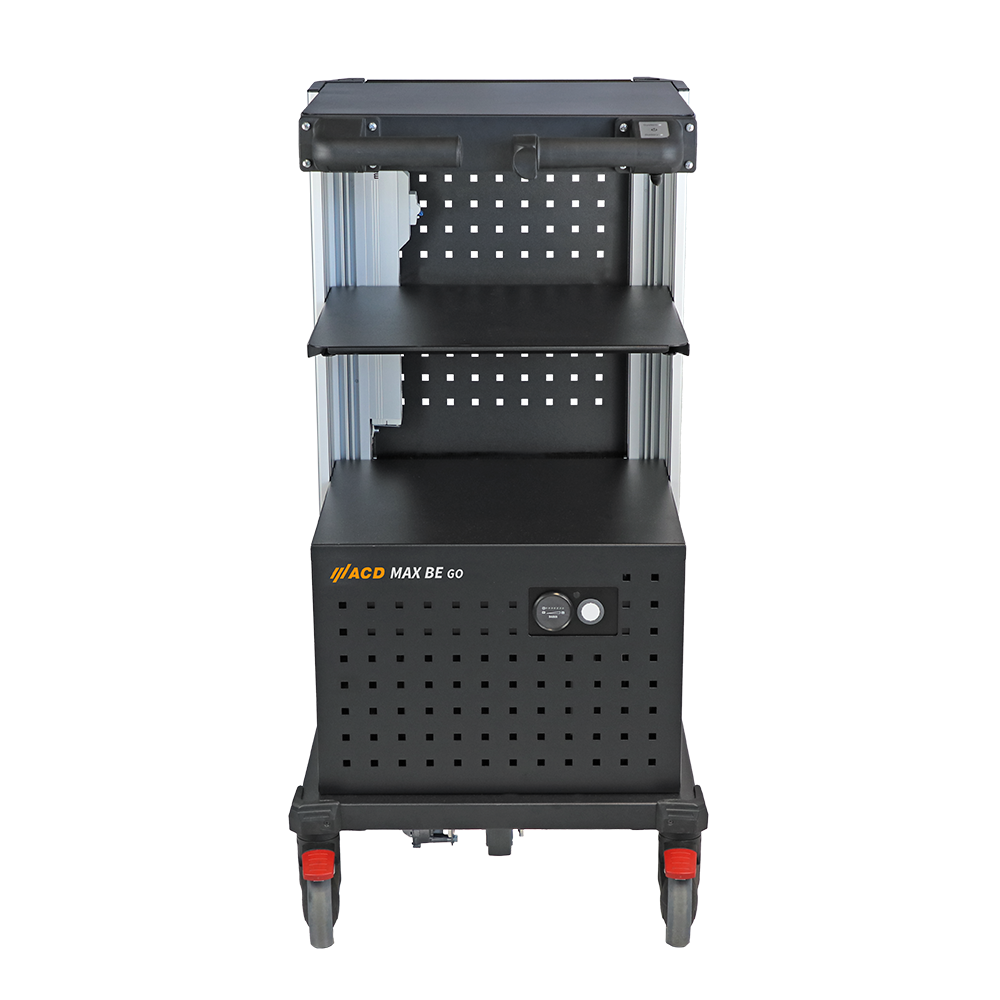

MAX STD
