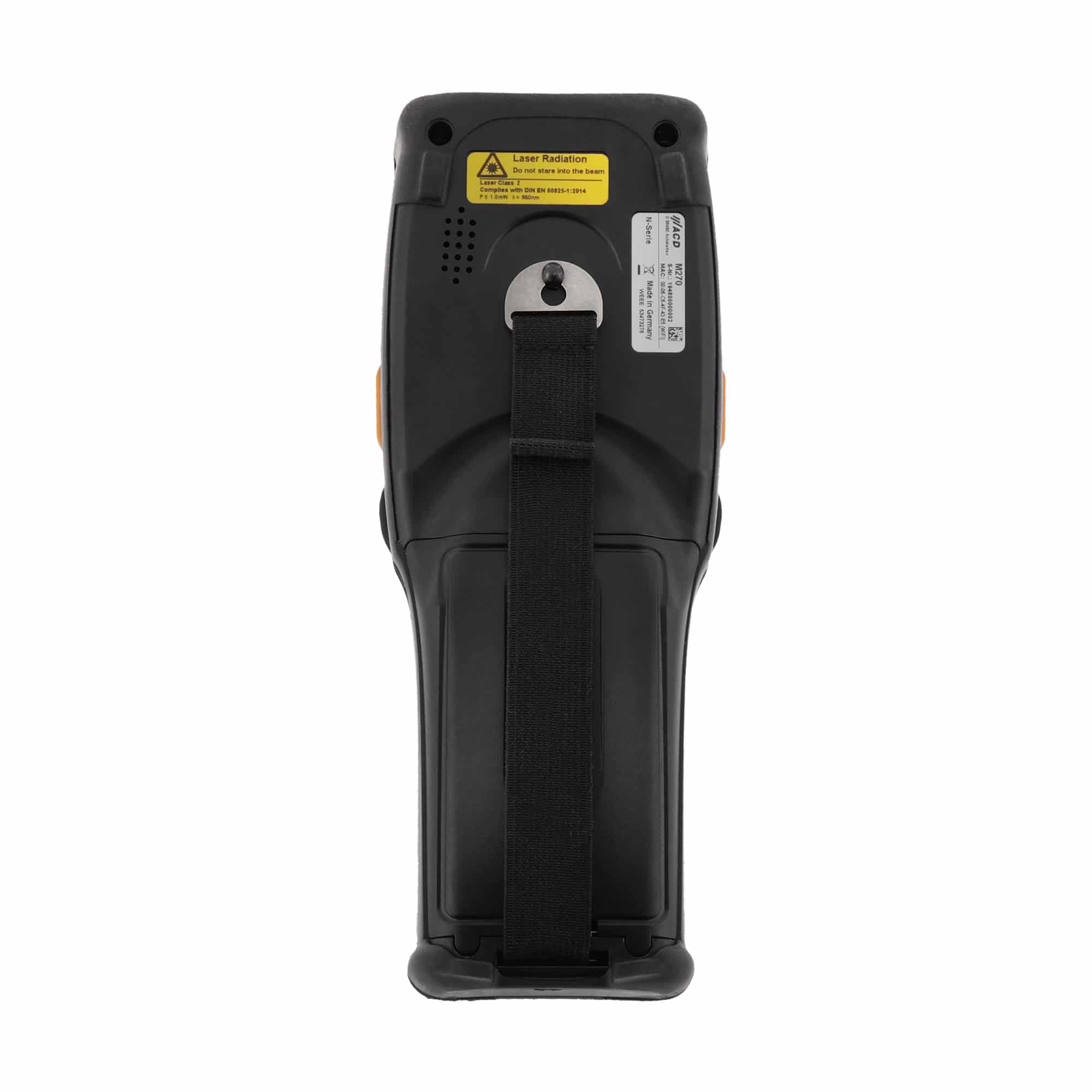

Mobiler Handheld Computer M270SE

Mobile Handheld Computer M270SE with Android™ Industrial+

Consistently developed based on the requirements of logistics and industry, the M270SE with the Android™ Industrial+ operating system offers a sturdy, smart solution for mobile applications, making it a true all-rounder in logistics.

Product Information

M270SE

The M270SE Mobile Handheld Computer features the following key data:

  • Android™ Industrial+ as a reliable, modern operating system
  • Security patches and upgrades over the entire product lifetime
  • Different reading ranges thanks to short-, mid- and long-range scanner
  • Intuitive and fast operation thanks to large keys, even with gloves on
  • Durability due to robust construction
  • Powerful NXP® processor
  • Various accessories such as pistol grips, mounting brackets and bags

Official product launch in 07/2022!

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

Technical Data

All data at a glance

System
  • NXP® processor i.MX8M Mini, 4x Cortex A53 (4x 1,8 GHz) and 1x Cortex M4 (1x 400 MHz)
  • 16 GB Flash, 2 GB RAM, Flash memory expandable
  • Android™ Industrial+
Device
  • Housing: ABS
  • Protection class: IP54
  • Device dimensions: 219 x 62/83 x 39/41 mm (L x H x W)
  • Weight: Ca. 500 g
  • Operating temperature: 0 °C to 40 °C/32 °F to 104 °F
  • Storage temperature: -20 °C to 70 °C-4 °F to 158 °F
Barcode scanner

Available variants:

  • 1D short-range scanner SE4750SR (integrated in the housing)
  • 2D mid-range scanner SE4750MR (integrated in the housing)
  • 2D longrange scanner SE4850 (integrated in the handle)
Options
  • WLAN according to IEEE 802.11 a/b/g/n/ac/d/h/e/i/r/w/v (2.4 GHz/5 GHz) incl. BT-compatible short-range radio (5.0)
  • WLAN Security: WEP, WPA, IEEE802.11i (Personal and Enterprise), WPA2, WPA2-PSK, 802.11x: Authentication
  • Micro SD card for memory expansion
  • Various software products including EasyToConfig, etc.
  • Compatibility with HasciSE via ACD EasyToConnect 2.0
Display
  • 3.5″ color TFT display with LED backlight
  • 480 x 640 pixels, 400 cd/m²
  • Status LED
  • Capacitive, minimum surface hardness of 6H
Keyboard
  • Quick-entry keyboard, 15 mm space between keys
  • 15 keys in hard case design
  • 10 function keys
  • Alphanumeric function of the keyboard
  • Side scanner keys
Power supply
  • Quick-change battery, li-ion with 24.5 Wh
    (3,400 mAh/7.2 V)
  • Docking station
  • Battery charger
Accessories
  • Docking station DS270
  • Battery charging station 1-fold/5-fold
  • Pistol grip
  • Various holsters/bags/holders
Interfaces
  • USB OTG

Product Equipment

Accessories

DS260 docking station

DS270 standard version

This docking station for Mobile Handheld Computer M270 is a battery charger and a PC-connection at once.

M260xx Power Transfer Box

DS270 NP charging and transmission box

This docking station transfers acquired data via modem, as well as for charging the M270, as well as a battery

NP260 charging station

Battery charging station NP270 (1-fold)

With this battery chargers you can recharge 1 at a time.

M260xx charging-station 5 slots

Battery charging station NP270 (5-fold)

With these battery chargers you can recharge 1 up to 5 batteries at the same time.

Replacement-battery M270

Replacement Battery

Battery for Mobile Handheld Computer M270.

Pistole-grip M270

Grip

The Mobile Handheld Computer M270 is available with a pistol grip and therefore especially suited for scan intensive tasks.

Halterung RAM Mount für mobile Terminals

RAM Mount mounting device for Mobile Handheld Computers

RAM Mount mounting device for Mobile Handheld Computers

M260xx Zipper und Schlaufe

M270 zipper and loop

M270 zipper and loop

M260xx Zipper

M270 Zipper

M270 Zipper

M260xx Holder

M260xx Holder

M260xx Holder

M260xx holder set ram mount

M270 Mount Set RAM Mount

M270 Mount Set RAM Mount

M260xx vehicle holder holster

M270 truck mounting holster

You can fix the M270 on industrial trucks with our vehicle holder.

M260xx vehicle holder

M270 vehicle mount

Vehicle mount for the M270 with joint clamp and fastening.
Supply voltage 10 – 60 V
– not suitable for units with handle
Note: The USB and serial interfaces available on the M270 vehicle mount cannot be used with the M270.

M260xx bag

M270 bag 1

The Mobile Handheld Computer M270 is always handy with our belt or shoulder bag.

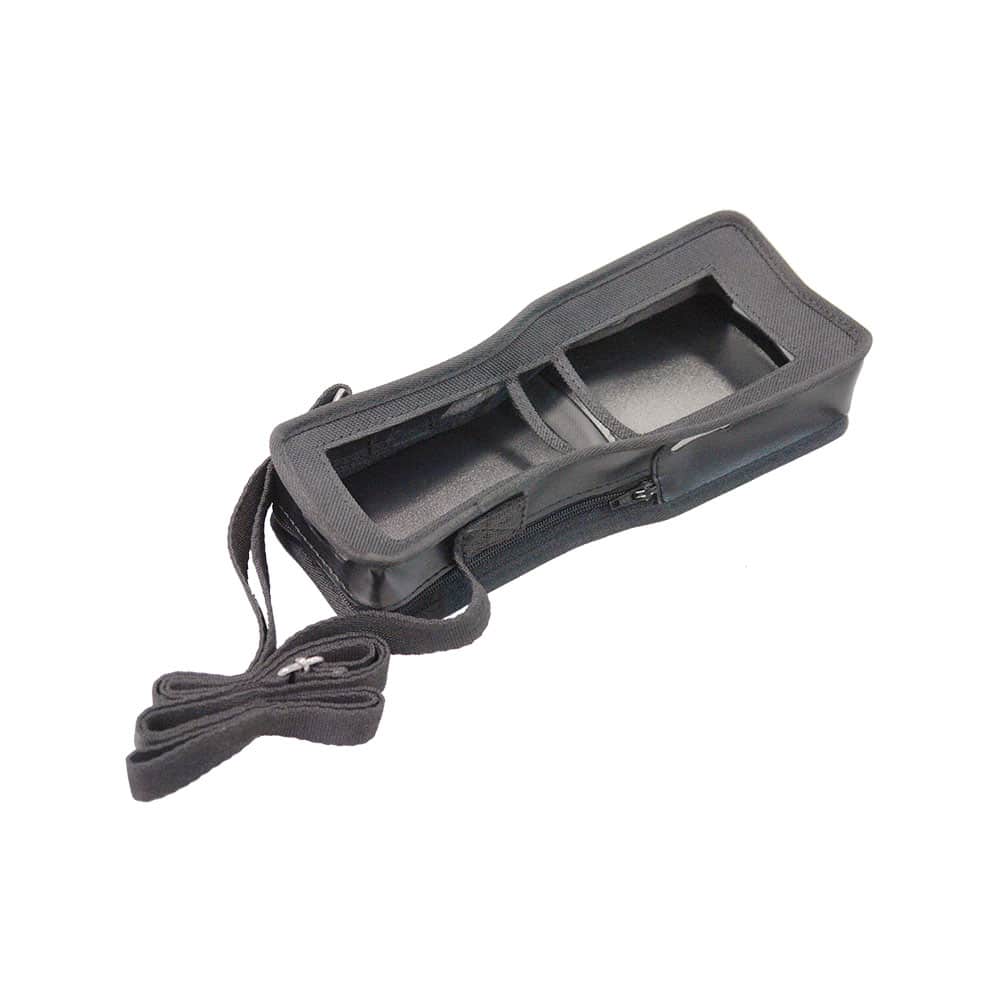

M260xx bag 2

M270 bag 2

M270 bag 2

M260xx bag

M270 bag 3

M270 bag 3 is suitable for Mobile Handheld Computers with grip

M260xx belt holster

M270 holster

The M270 is always handy with our holster.

M2xx holster bag

M270 holster bag

M270 holster bag

M260xx belt

M270 belt

M270 belt

M210se lift-belt

M270 strap for bags (not adjustable)

M270 strap for bags (not adjustable)

M210se lift-belt

M270 strap for bags (adjustable)

M270 strap for bags (adjustable)

Kapazitiver Touchstift

Capacitive touch pen

Capacitive touch pen (length approx. 11 cm; diameter approx. 0.6 cm) for easy operation of the M270.

Similar products

Products that might also interest you

Downloads
Files for download
M270 Logistic

Logistics all-rounder in a new generation

Mobile Handheld Computer M270SE

The new M270SE mobile handheld computer is – like its predecessor the M270 – particularly suitable for scan-intensive activities within logistics and industry. As operating system with the M270SE on the safe and very stable Android™ Industrial+ is fallen back, in order to ensure even in rough storage environments sufficient system stability. As usual, the M270SE covers numerous areas of application – mainly within logistics and industry. These include order picking in the warehouse and working in incoming and outgoing goods. The M270SE’s large keys ensure optimal operation, even when wearing gloves.

Learn more
Wide range of equipment variants

The variety of equipment variants already familiar from the M270, as well as its robustness and ergonomic handling, offer the user exactly those features and functionalities that are important in mobile use. These include the familiar hard-shell fast-entry keyboard for input-intensive processes, various scanner variants (short-range/mid-range/long range), a quick-change battery with simple locking mechanism, as well as a handle and strap. Other special features of the mobile handheld computer include a high-resolution VGA display with capacitive touch screen for familiar touch operation and Android™ Industrial+, as well as BT-compatible short-range radio (5.0) for pairing with the ACD backhand scanner HasciSE.
