M2Smart® HMI Case

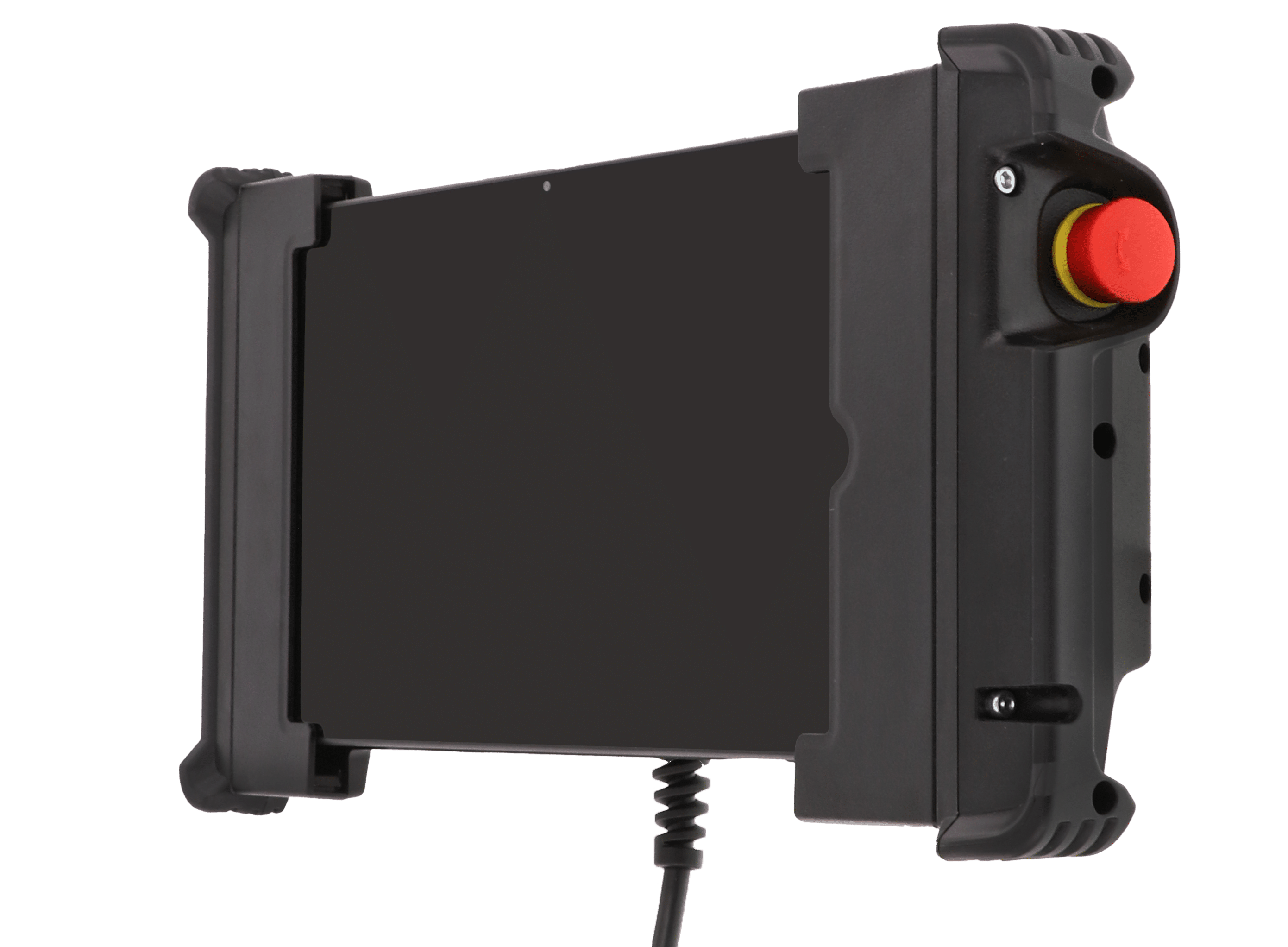

The M2Smart® HMI Case enables safe operation of machines in many areas with the help of additional modules such as emergency stop buttons and three-stage enabling switch. A robust, industrial case for the use of commercially available tablets such as the iPad from Apple or tablets from Samsung and Lenovo. It is suitable as an entry-level solution for the smart control of machines and systems.
Product Information
M2Smart® HMI Case
Play it safe when it comes to controlling and monitoring industrial machines and systems: The M2Smart® HMI Case is a convenient and secure entry-level solution for the smart control of machines. Common tablets such as the iPad from Apple or tablets from Samsung or Lenovo can be integrated without tools into the case via a quick release fastener. The wired case has an obligatory emergency stop button and a three-stage enabling switch that can be triggered immediately and easily in an emergency. Thanks to the use of commercially available tablets, any operating system can be used. The long-term availability of the HMI Case increases the attractiveness for industry.
Some key facts
- Robust case for the use of commercially available tablets
- Reliable operation even in safety-critical areas
- Side-mounted emergency stop and handle incl. three-stage enabling switch on the rear of the device
- Customized modules such as joysticks, hand wheels, etc.
- Transmission of all non-safety data such as operating and visualization functions via WLAN
- Flexibility through the use of any operating system
- Long-term availability of the HMI Case
- Entry-level variant for smart machine and system control
Technical Data
All data at a glance
Recommended Tablets
- Samsung Galaxy Tab A7
- Samsung Galaxy Tab A8
- Samsung Galaxy Tab S8
- Apple iPad 8th generation
- Apple iPad 9th generation
- Lenovo Tab M10 Full HD Plus
- Huawei MatePad SE
Safety elements
- Enabling switch/Emergency stop button: Performance level PLe according to ISO 13849 achievable
- Emergency stop B10d: 250,000
- Enabling switch B10d: 2,000,000 (24 V AC/DC, 100 mA), 100,000 (rated load)
General information
- Power supply: Via connection cable
- Housing: ABS/Aluminum
- Protection class: IP65
- Operating temperature: -25 °C to 50 °C (no icing), for USA and Canada: -25 °C to 40 °C (no icing)
- Storage temperature: -25 °C to 50 °C (no icing)
- Rel. humidity: 45 % to 80 %, non-condensing
- Permitted air pressure: Up to 2,000 m above sea level (operation, storage, transportation)
- Optional: Various modules such as handwheels, additional buttons on request
- Special feature: Quick-release fastener on the back for tool-free integration of a tablet
- Certification: CE, UKCA, UL
Interfaces
- Communication of safety data: Wired (emergency stop and enabling function)
- Connection cable: 10-wire, Length: 5 m or 10 m
- Outer sheath: PUR
Control elements
- Emergency stop button: Emergency stop button, 2-channel, 2 NC contacts (NC)
- Enabling switch: Three-stage enabling switch, 2-channel, 2 NO contacts (NO), suitable for right- and left-handed users
Dimensions, Weight
- Dimensions: 355 – 416 x 197 x 93 mm (L x W x H)
- Weight:
1050 g, without tablet, without cable
1400 g, without tablet, with 5 m cable
1750 g, without tablet, with 10 m cable
Product Equipment
Accessories
M2Smart® HMI Case w – Tablet buffer corners 1
Secure attachment of tablets
• Tablets: Samsung Galaxy Tab A7, Lenovo Tab M10 Full HD Plus, Huawei MatePad SE
M2Smart® HMI Case w – Tablet buffer corners 2
Secure attachment of tablets
• Tablets: Samsung Galaxy Tab A8, Samsung Galaxy Tab S8
M2Smart® HMI Case w – Wall mount
Passive wall mount for secure placement on the wall
• Device dimensions: 270 x 175 x 101 mm (L x W x H)
• Weight: 600 g
• Special feature: Wall mount incl. cable holder
SIMILAR PRODUCTS
Products that might also interest you
M2Smart® HMI Case
Wired case (hybrid solution) for the use of common tablets in the safety-critical area
M2Smart® HMI5
Wireless HMI device for functional safety with 5 inch
M2Smart® HMI10 Wired
Wired HMI device (hybrid solution) for functional safety
M2Smart® HMI10
Wireless HMI device for functional safety with 10 inch
Downloads
Flyers & Catalogues
Downloads
Technical documentation
M2Smart® HMI Case
Safe machine control with a consumer tablet
ACD Elektronik GmbH is adding a new product to its HMI series: a robust case with emergency stop and enabling functions for safer and flexible operation of machines in the industrial sector. The special device design combines the use of these safety functions in conjunction with commercially available tablets.
In view of the latest developments and technical progress, tablets are increasingly being used for the smart control of machinery. A common consumer tablet in the safety sector – how is that possible? The solution is: M2Smart® HMI Case. The robust case makes it possible to integrate common tablets from manufacturers such as Apple, Samsung or Lenovo easily and without tools. The result is an HMI device with emergency stop button and enabling switch for reliable machine operation and control in safety-critical areas.
Due to its robustness, the M2Smart® HMI Case is ideally suited for industrial environments, plant and machine construction, but also numerous other areas. The device is permanently supplied with power via the connection cable, and the safety data is also transmitted via a direct interface, so that maximum secure data transmission is guaranteed. By using a consumer tablet, any operating system can be used and offers the user the advantage of a familiar user interface.
Customer-specific adaptations for the use of other tablet models, such as Windows tablets, are possible. The case can be optimally adapted to individual requirements by adding accessories such as modules with buttons or joysticks. The case can also be supplemented with further customised features on request.
