M2Smart® HMI10

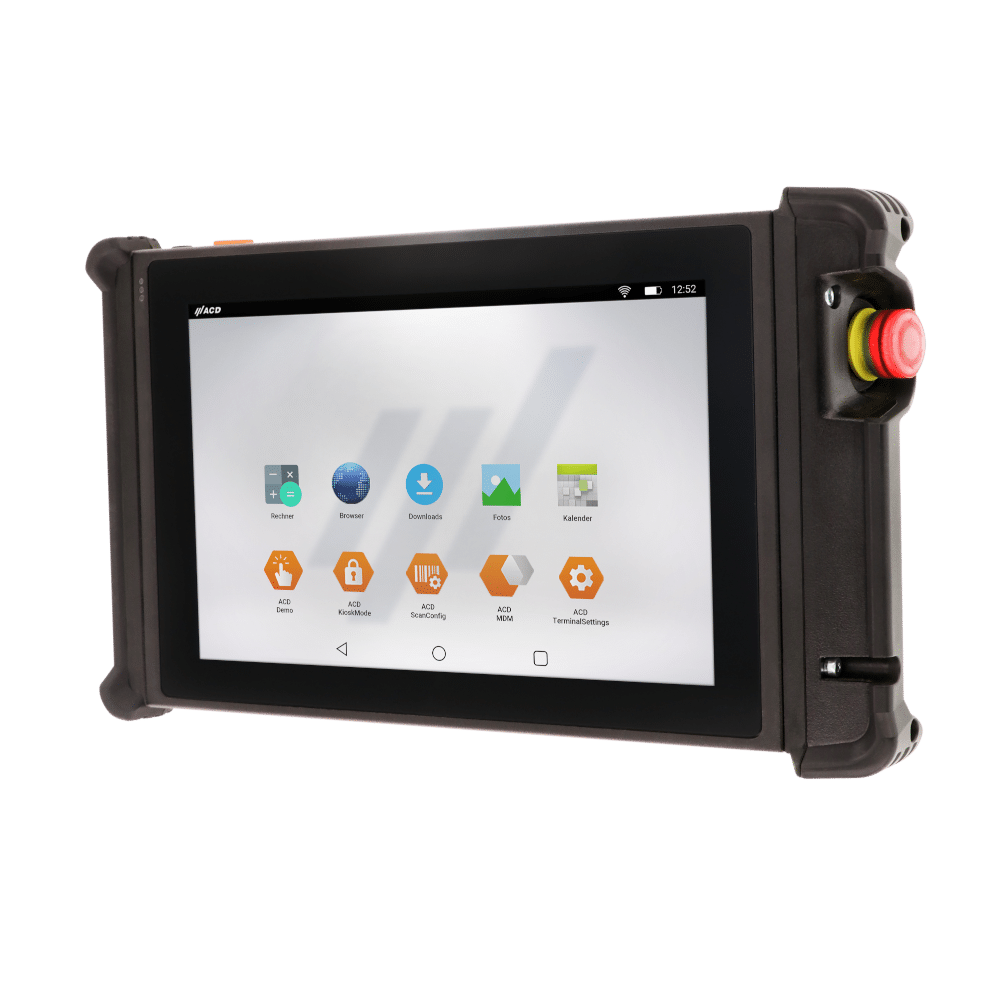

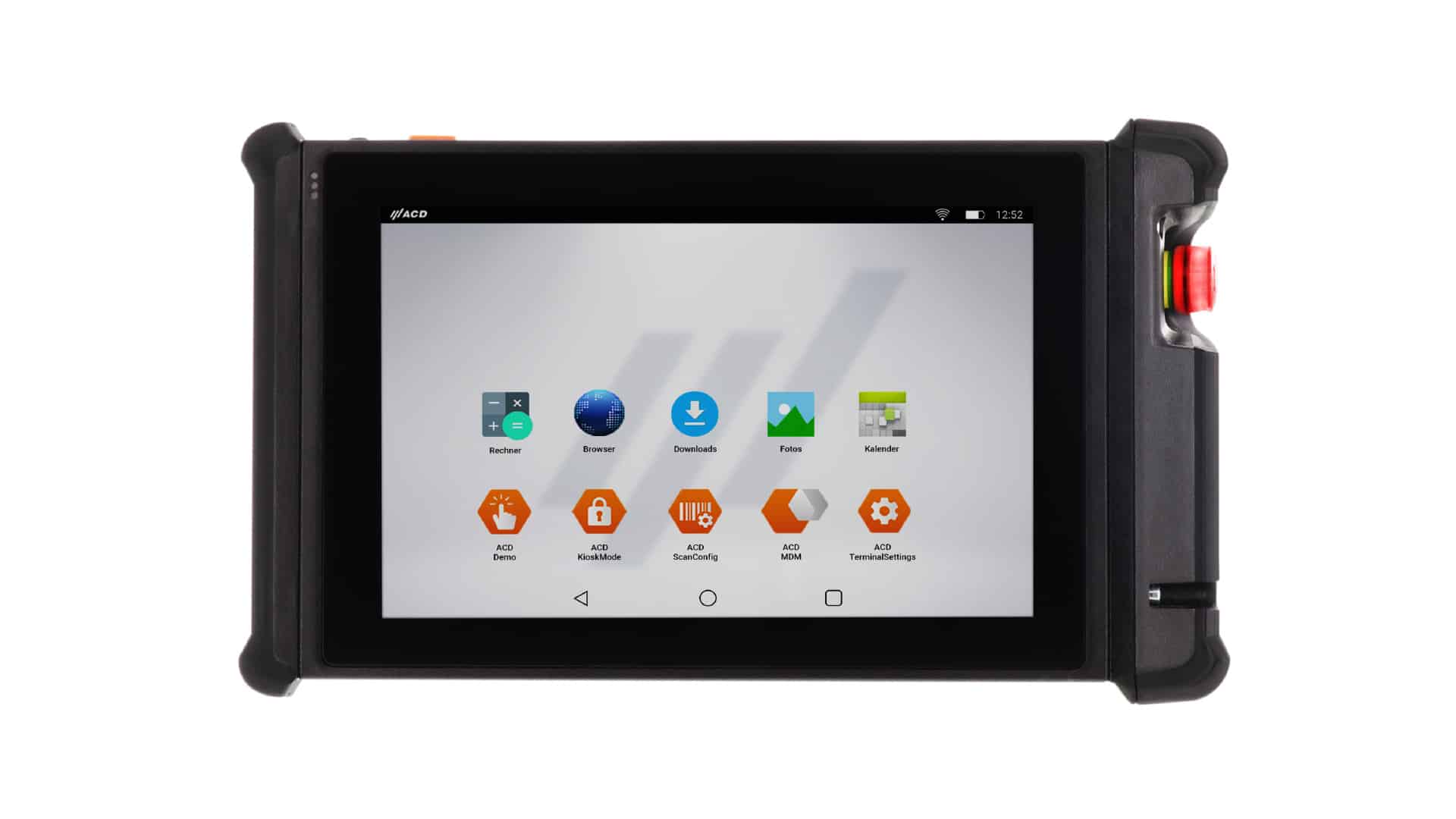

Mobile HMI: M2Smart® HMI10
The M2Smart® HMI10 with the corresponding safety components (emergency stop, enabling switch) is the ideal mobile solution for the safe and flexible operation of industrial systems and machines. Where previously stationary or wired operating systems had to be used, the M2Smart® HMI10 with the associated safety components offers completely new possibilities and increased freedom of movement and flexibility thanks to the wireless solution.
Product Information
Mobile HMI: M2Smart® HMI10
Via the “functionally safe” radio connection, the M2Smart® HMI10 makes it possible to meet the high requirements in terms of safety equipment of a machine even with a wireless operating system. Both the emergency stop button (M2Not-Halt10), which is obligatory in this environment, and a three-stage enabling button (M2Zustimm10) are located directly on the mobile handheld computer. The corresponding signals are packaged in an encrypted “data packet” and transmitted to the M2Smart® Gateway via a Black Channel using Bluetooth.
Some key facts
- Lighted emergency stop and three-stage enabling switch
- Reliable operation even in safety-critical areas
- Interference-insensitive and uninterrupted transmission of all safety data via Bluetooth
- Transmission of all non-safety data such as operating and visualization functions via WLAN
- High security and intuitive operability through Android™ Industrial+ environment
- Comfortable App for parameterizing the wireless operating system
- Customized modules such as joysticks, hand wheels, etc. possible on request
- 10.1 inch display with capacitive touchscreen
- Quick-change battery for uninterrupted operation
- Diverse ACD software apps such as ACD KioskMode and simultaneous use of other Android™ apps
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationTechnical Data
All data at a glance
Display
- Type: IPS TFT color display
- Size: 10.1“ (16:10)
- Resolution: 1280 x 800 pixels
- Brightness: 500 cd/m2
- Touch screen: Capacitive, Anti-glare hard coating (3H)
- Backlight: LED backlight
- Display: Three status LEDs
Safety elements
- Enabling switch/Emergency stop button: Performance level PLd according to ISO 13849 achievable
- Emergency stop B10d: 250,000
- Enabling switch B10d: 2,000,000 (24 V AC/DC, 100 mA), 100,000 (rated load)

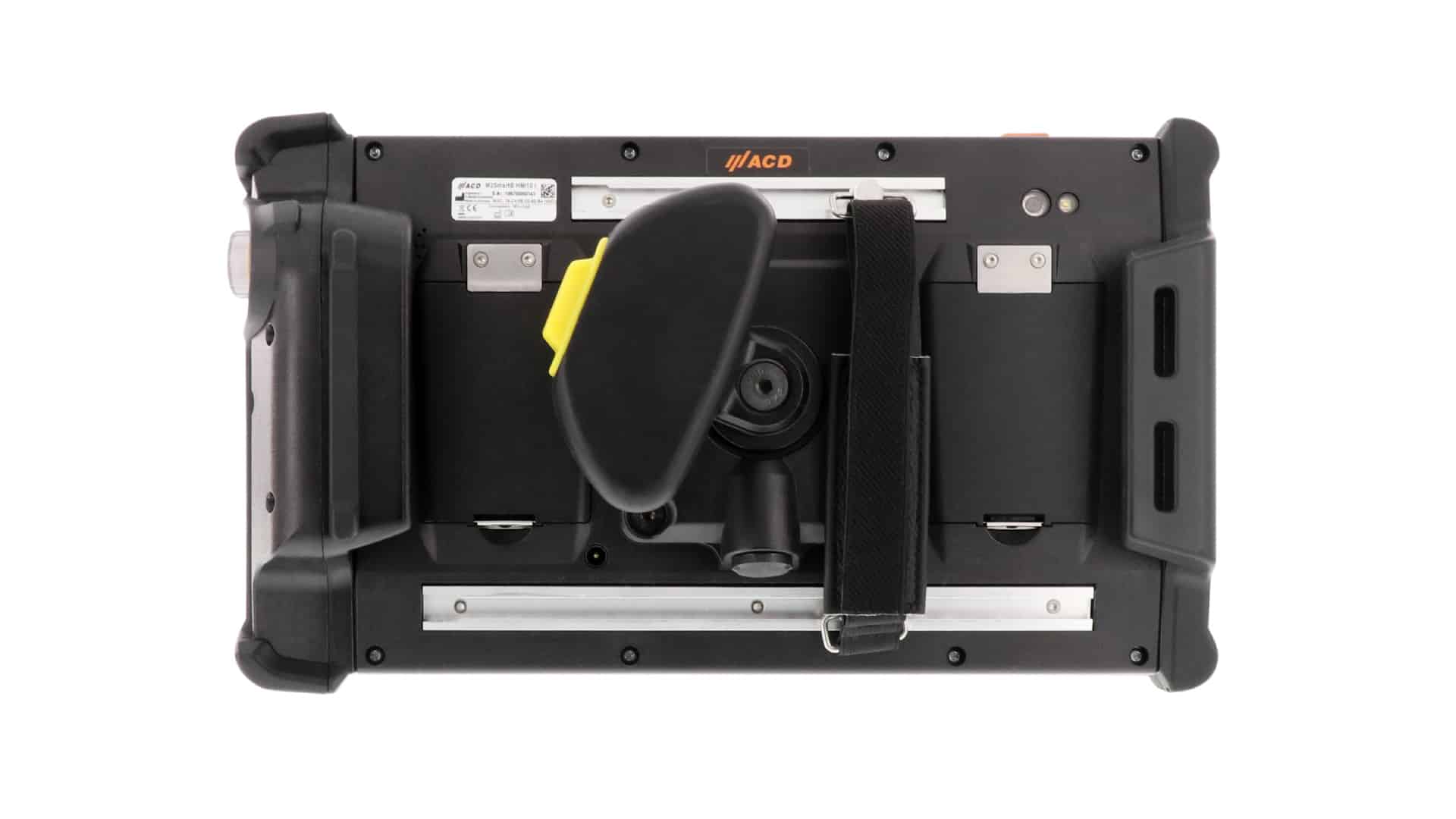

Control elements
- Emergency stop button: Illuminated emergency stop button, 2-channel, 2 NC contacts (NC)
- Enabling switch (optional): Three-stage enabling switch, 2-channel, 2 NO contacts (NO), suitable for right- and left-handed users
- Buttons: On/off button, one side button (freely configurable)
Dimensions, Weight
- Dimensions with enabling switch:
196 x 333 x 93 mm (L x W x H) - Weight with enabling switch:
Ca. 1700 g - Dimensions without enabling switch:
196 x 333 x 57 mm (L x W x H) - Weight without enabling switch:
Ca. 1500 g
ACD HMIConfig App
With the ACD HMIConfig application, all functions of the M2Smart® HMI10 system can be managed and controlled.
- Monitoring the safety function
- Configuration of the safety system
- Individually configurable effective range restriction
ACD HMIService
ACD HMIService is the interface between the ACD HMIConfig front-end application and the M2Smart® HMI system. ACD HMIService offers an API interface with which the functions of ACD HMIService can be integrated into your own applications.
Interfaces
- Communication of visualization and operating data: WiFi according to IEEE802.11a/b/g/n/ac/d/h/e/i/r/k/w/v (2.4 GHz/5 GHz) incl. BT-compatible short-range radio 5.0
- Communication of safety data: Black channel method (nominal operating range with unobstructed view ca. 200 m)
- NFC reader: For pairing M2Smart® HMI10 and M2Smart® Gateway i or M2Smart® Gateway o
- NFC functions: Reader/Writer mode, Peer to Peer mode, Card emulation
- NFC protocols: ISO14443A/B, ISO15693, MIFARE/DESFire, Sony FeliCa
- Loudspeaker: Integrated loudspeaker
- USB: USB-C for data transfer
- Camera (optional): 5 MP autofocus camera with illumination
- Distance control: Individually configurable effective range restriction
Power supply
- Power supply: Quick-change battery, Li-Ion or 15 V DC/2.4 A via DC socket
- Battery capacity: 22.8 Wh (6,000 mAh/3.8 V), Battery change during operation (ca. ten seconds buffering)
Core
- CPU: NXP® i.MX8M Mini, 4x Cortex A53 (4x 1.8 GHz) and 1x Cortex M4 (1x 400 MHz)
- Memory: 16 GB Flash, 4 GB RAM (optional 32 GB Flash available)
General information
- Operating system: AndroidTM Industrial+
- Housing: ABS/PC
- Protection class: IP54
- Operating temperature: -20 °C to 50 °C
- Storage temperature: -20 °C to 60 °C
- Charging temperature: 5 °C to 35 °C
- Rel. humidity: 5 % to 90 %, non-condensing (M2Zustimm10: 45 % to 85 %, non-condensing)
- Permissible air pressure: Up to 2,000 m above sea level (operation, storage, transportation)
- Optional: Various modules such as handwheels, additional buttons on request
- Certification: CE, TÜV
- System components: M2Smart® Gateway i, M2Smart® Gateway o, M2Smart® HMI Access Point (optional)
Technical Data
M2Smart® Gateway i
General information
- Mounting: Top-hat rail mounting within the control cabinet
- Power supply: 24 V DC (+/- 15 %), max 100 mA
- Housing: PC/PA
- Protection class: IP20
- Operating temperature: 0 °C to 60 °C
- Storage temperature: -20 °C to 60 °C
- Rel. humidity: 5 % to 95 %, non-condensing
- Permissible air pressure: Up to 2,000 m above sea level (operation, storage, transportation)
- Certification: CE, TÜV
Interfaces
- Safe outputs: Two digital outputs for emergency stop function, Two digital outputs for enabling function, Two digital outputs for displaying the connection status
- Digital outputs: One digital output for coupling indication via light signal, Two digital outputs individually controllable
- Digital inputs: One digital input for reset, One digital input for password reset
- NFC transponder: External NFC transponder for pairing the M2Smart® HMI10 and M2Smart® Gateway i, multiple NFC transponders possible
- Antennas: Antenna connection for screw antennas, optional use of antenna extension cables for use in the control cabinet possible
- Communication: Safety data via Black channel method (range in a typical industrial environment approx. 30 – 40 m), configurable error response time
Display
- Status indicator: Two status LEDs (power/radio connection)
Dimensions, Weight
- Dimension: 137 x 145 x 47 mm (L x W x H)
- Weight: 320 g
Technical Data
M2Smart® Gateway o
General information
- Mounting: Wall mounting outside the control cabinet
- Power supply: 24 V DC (+/- 15 %), max 100 mA
- Housing: ASA/PC
- Protection class: IP65
- Operating temperature: -20 °C to 50 °C
- Storage temperature: -20 °C to 60 °C
- Rel. humidity: 5 % to 95 %, non-condensing
- Permissible air pressure: Up to 2,000 m above sea level (operation, storage, transportation)
- Certification: in progress
Interfaces
- Safe outputs: Two digital outputs for emergency stop function, Two digital outputs for enabling function, Two digital outputs for displaying the connection status
- Digital outputs: One digital output for coupling indication via light signal, Two digital outputs individually controllable
- Digital inputs: One digital input for reset, One digital input for password reset
- NFC transponder: Internal NFC transponder for pairing the M2Smart® HMI10 and M2Smart® Gateway o, several remote NFC transponders possible
- Antennas: Antenna connection for screw antennas, optional use of antenna extension cables
- Communication: Safety data via Black channel method (range in a typical industrial environment approx. 30 – 40 m), configurable error response time
Display
- Status indicator: Two status LEDs (power/radio connection)
Dimensions, Weight
- Dimension: 160 x 90 x 65 mm (L x W x H)
- Weight: 417 g
Technical Data
M2Smart® HMI Access Point
General information
- Power supply: Via Ethernet (PoE) or 3-pin plug
- Power supply Ethernet (PoE): 37 – 57 V
- Power supply 3-pin plug: 19 – 36 V, 1.7 W
- Housing: Plastic
- Protection class: IP66, IP67
- Operating temperature: -40 °C to 65 °C
- Storage temperature: -40 °C to 85 °C
- Certification: CE, UL, ATEX, FCC, IC
Interfaces
- Connections: RJ45, 3-pin screw connection
- Communication: BT-compatible short-range radio V2.1, WiFi
- Operating mode: Access Point
- Pairing: The M2Smart® HMI Access Point is linked to the corresponding M2Smart® Gateway i or M2Smart® Gateway o thanks to a pre-configuration, so pairing using an NFC transponder is implemented in the same step as pairing the M2Smart® Gateway i or M2Smart® Gateway o
Dimensions, Weight
- Dimensions: 68 x 75 mm (W x H), Height above mounting surface: 42 mm
- Weight: 85 g
Functionality
How the M2Smart® HMI System works
Produkt Equipment
Accessories
M2Smart® HMI10 r – Active Mount
Active wall mount with charging option
• Operating temperature: -20 °C to 50 °C
• Device dimensions: 124 x 270 x 112 mm (L x W x H)
• Weight: 530 g
• Power supply: 15 – 24 V DC, 36 W
• Interfaces: DC socket
• Certification: CE
Connection set – 36 W (EU)
Medical power supply unit for active holder and M2Smart® HMI10
• Power supply unit: 100 – 240 V AC – 15 V / 36 W – 2.4 A
• AC power cable: Type F
• Length mains cable: 2.0 m
DC connection cable
DC connection cable for active mount
• DC connection cable: 15 V – 24 V
• Cable length: 5.0 m
• Interfaces: Open cable end
M2Smart® HMI10 r – Passive Mount SE
Passive wall mount without charging option
• Operating temperature: -20 °C to 50 °C
• Device dimensions: 124 x 270 x 112 mm (L x W x H)
• Weight: 500 g
• Special feature: Upgrade to active mount possible
Contact box for M2Smart® HMI10 r – Mount
Contact box incl. charging contacts for upgrade the passive mount SE
• Power supply: 15 – 24 V DC, 36 W
• Interfaces: DC socket
• Mounting: Mounting on passive mount using three screws
Replacement battery Plus
Replacement battery for the M2Smart® HMI10 Radio
• Power supply: 22.8 Wh (3.8 V/6,000 mAh)
• Battery type: Li-Ion
• Special feature: Change during operation
Cover battery compartment
Cover for closing the second battery compartment
• Special feature: Alternatively, a second spare battery can be carried
Capacitive touch pen
Capacitive touch pen for easy operation of the M2Smart® HMI10 Radio
• Length: Ca. 11 cm
• Diameter: Ca. 0.6 cm
M2Smart® display protection film 10.1 Inch / low reflection
Display protection film with anti-reflective coating
• Material: Extremely robust polymer composite
• Technology: Anti fingerprint
• Surface: > 3H surface hardness
M2Smart®display protection film 10.1 Inch
AirGlass display protection film
• Technology: Anti fingerprint
• Surface: 9H scratch resistance
• Impact resistance: IK06
DS2Battery Charging box (2-fold)
For charging two replacement batteries
• Operating temperature: 0 °C to 40 °C
• Device dimensions: 138 x 171 x 61 mm (L x W x H)
• Weight: 440 g
• Power supply: 15 V DC, 36 W
• Interfaces: DC socket
• Certification: CE
Connection set – 36 W (EU, CH, NO, IS, LI)
Connection set for the DS2Battery Charging box (2-fold)
• Power supply unit: 100 – 240 V AC – 15 V / 36 W
• AC power cable: Type C
• Length mains cable: 1.5 m
Connection set – 36 W (GB, IE, MT, CY)
Connection set for the DS2Battery Charging box (2-fold)
• Power supply unit: 100 – 240 V AC – 15 V / 36 W
• AC power cable: Type G
• Length mains cable: 2.0 m
Connection cable for rod antenna
Extension cable for rod antenna
• Length: 1 m, 2 m, 5 m or 10 m
• Cable: RG58 coaxial cable with low attenuation
• Interfaces: RP-SMA male <–> RP-SMA female
NFC transponder external
External NFC transponder for remote mounting
• NFC transponder: For pairing with M2Smart® Gateway i or M2Smart® Gateway o
• Special feature: On Metal Tag, Customer-specific memory area, Use of several remote NFC transponders
SIMILAR PRODUCTS
Products that might also interest you
M2Smart® HMI5
Wireless HMI device for functional safety with 5 inch
M2Smart® HMI10 Wired
Wired HMI device (hybrid solution) for functional safety
M2Smart® HMI10
Wireless HMI device for functional safety with 10 inch
Downloads
Flyers & Catalogues
Downloads
Technical documentation

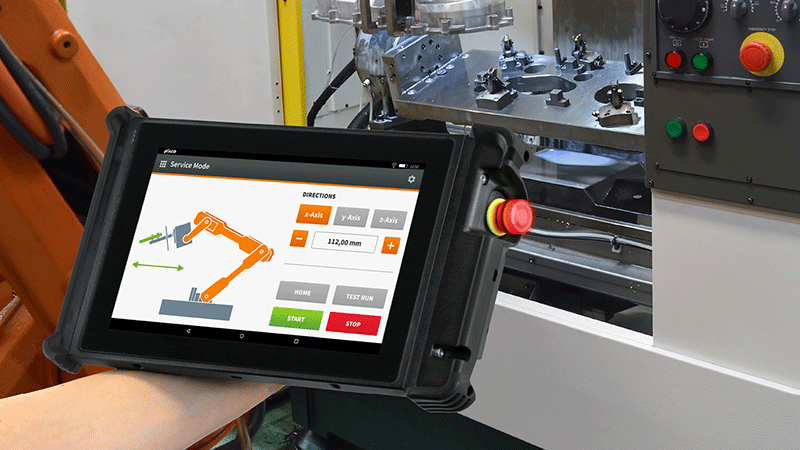

Mobile HMI with 10 inch for smart machine operation
M2Smart® HMI10 with associated safety components

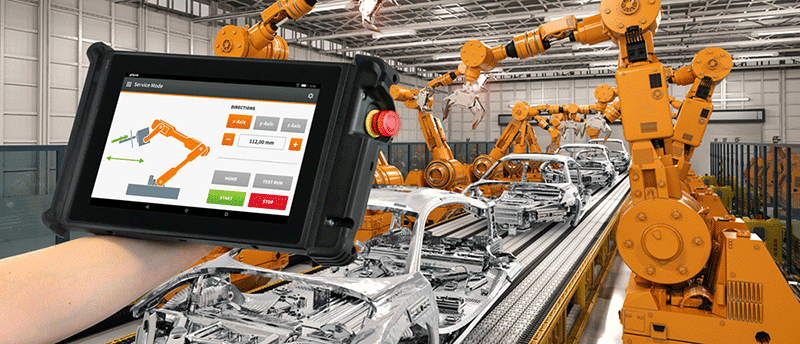

The M2Smart® HMI10 represents a major innovation for the area of safe and flexible operation of industrial plants and machines. Where stationary or wired operating systems had to be used so far, the M2Smart® HMI10 with the associated safety components M2Zustimm10 and M2Not-Halt10 offers completely new possibilities.
Via a “functionally safe” radio connection, it becomes possible for the first time to meet the requirements of, for example, the Machinery Directive in terms of safety equipment of a machine even with a wireless operating system. Both the emergency stop button, which is obligatory in this environment, and a three-stage enabling button are located directly on the M2Smart® HMI10 and the corresponding signals, packaged in an encrypted “data packet”, are transmitted via Bluetooth to the M2Smart® Gateway, which takes over the transfer of the data to the machine.
Usability is a top priority
To ensure user acceptance, the system was designed to be easy to parameterize. This is achieved with a specially developed app that makes it easy to set important parameters such as range or naming of the M2Smart® Gateway. The pairing process, i.e. the direct, secure connection of a M2Smart® HMI with the M2Smart® Gateway, can also be carried out in just a few seconds. The concept for the entire safety system has been certified by the German TÜV and is suitable for safety levels 3 to Pld. Furthermore, the safety system can be described as an “open system”, i.e. it can be used almost independently of the control hardware and software used.
On the other hand, the modularity known from the M2Smart®, including module change, can still be realized due to the two lateral guide rails. The M2Smart® HMI10 with M2Zustimm10 and M2Not-Halt10 is the first system on the market that transfers the operating philosophy of a consumer tablet to an industrial device with a high safety level. As an open system, the M2Smart® HMI10 can be integrated into all conceivable control architectures for the first time.
As a modular, scalable system that can be adapted to specific requirements (enabling switch yes/no, additional operating elements such as buttons, handwheel or joystick), it is unique on the market. The modules can be easily and quickly attached by the user via the two lateral guide rails and securely fixed with screws. Thus, different modules can be mounted to the basic device (depending on the application) and also exchanged (in case of need or repair). This makes the M2Smart® HMI10 particularly service-friendly.
