M2Smart®SE with UHF-RFID
Mobile Handheld Computer M2Smart®SE UHF-RFID
The M2UHF-RFID module transforms the M2Smart®SE mobile handheld computer into an industrial UHF-RFID handheld. With its linearly polarized antenna and an adjustable output power of up to 23 dBm (Shortrange) or 27 dBm (Midrange), the compact module covers the typical application scenarios in industrial environments.
Product Information
M2Smart®SE with UHF-RFID
Flexible and modular for your RFID processes
Important key facts:
- Frequency range EU: 865 to 868 MHz
- Frequency range Worldwide: 902 to 928 MHz
- Antenna type: Integrated Linear Polarized
- ePop-Loq® adapter for RFID reader from TSL; e.g. Longrange UHF-RFID
- Convenient DEMO app with numerous configuration options
- Android™ Industrial+ operating system, where the main focus is on security aspects
- Reliable plug and play function for frequent module changes
- Robust housing design for rough everyday use
- Can be combined with other modules such as keyboards, handle, scanner (shortrange/midrange/longrange), etc.
In 2020, the M2Smart®SE mobile handheld computer received the iF Design Award, the German Innovation Award, and the Innovation Award of the State of Baden-Württemberg.
By loading the video, you accept YouTube's privacy policy.
Learn more
Technical Data
All data at a glance
Midrange UHF-RFID
- Frequency range EU: 865 to 868 MHz
- Frequency Range Worldwide: 902 to 928 MHz
- Reading range: Up to 6 meters
- Antenna Type: Integrated Linear Polarized
- Output Power: 0 dBm to +27 dBm
- Approvals: CE
- Protection class M2UHF-RFID module: IP54
- M2UHF-RFID App: ACD M2UHF-RFID App with various settings and the functions of reading, writing and locating UHF RFID tags
- ePop-Loq® adapter for RFID reader from TSL; e.g. Longrange UHF-RFID
Supported RFID protocols
- EPCglobal UHF Class 1 Gen 2
- ISO 18000-63 (formerly 18000-6C)
- DRM (Dense Reader Mode) support
System
- 2 GB RAM, optionally larger memory possible
- Android™ Industrial+; version 9.0
Display
- 4.8″ TFT color display with LED backlight
- 1280 x 720 pixels, 280 cd/m²
- 3 status LEDs
- Capacitive, surface hardness according to MOHS category 5-6
Options
- 5 MP auto-focus camera with lighting
- WLAN according to IEEE 802.11 a/b/g/n/ac/d/h/e/i/r/w/v (2,4 GHz/5 GHz) incl. BT-compatible close-range network 5.0
- WLAN Security: WLAN Security:WEP, WPA, IEEE802.11i (Personal and Enterprise), WPA2, WPA2-PSK, 802.11x: authentication
- Various software products such as EasyToConfig
- SOTI® certification
Shortrange UHF-RFID
- Frequency range EU: 865 to 868 MHz
- Frequency Range Worldwide: 902 to 928 MHz
- Reading range: Up to 1.5 meters
- Antenna Type: Integrated Linear Polarized
- Output Power: 0 dBm to +23 dBm
- Approvals: CE, FCC (further non-European approvals from 2021)
- Protection class M2UHF-RFID module: IP54
- M2UHF-RFID App: ACD M2UHF-RFID App with various settings and the functions of reading, writing and locating UHF RFID tags
- ePop-Loq® adapter for RFID reader from TSL; e.g. Longrange UHF-RFID
Device
- Housing: ABS/PC
- Protection class: IP54/IP65
- Dimensions with module: 210 x 82 x 28 mm (L x W x H)
- Weight with module: Approx. 450 g
- Operating temperature: -20 °C bis 50 °C/-4 °F to 122 °F
- Storage temperature: -20 °C bis 60 °C/-4 °F to 140 °
Keyboard
- Side On-/Off key
Power supply
- Quick-change rechargeable battery, li-ion with 22.8 Wh (6,000 mAh/3.8 V)
- Docking station incl. battery charger for spare battery
Product Equipment
Accessories
DS2Smart® charging and transmission box
DS2Smart® charging and transmission box
DS2Smart® charging box
DS2Smart® charging box
DS2Smart® Developer box
Housing with LED Display for charging the M2Smart®SE, as well as charging a replacement battery. Incl. led out USB cable for connection with a PC.
DS2Battery Charging box 2-fold
Housing with LED indicators for charging two spare batteries of the M2Smart®SE.
M2Key16 Logistic
Attachable hard-shell keyboard with 16 keys as lower plug-on module for the M2Smart®SE, can be changed without tools.
M2Temperature with/without insertion probe
M2Temperature with/without insertion probe

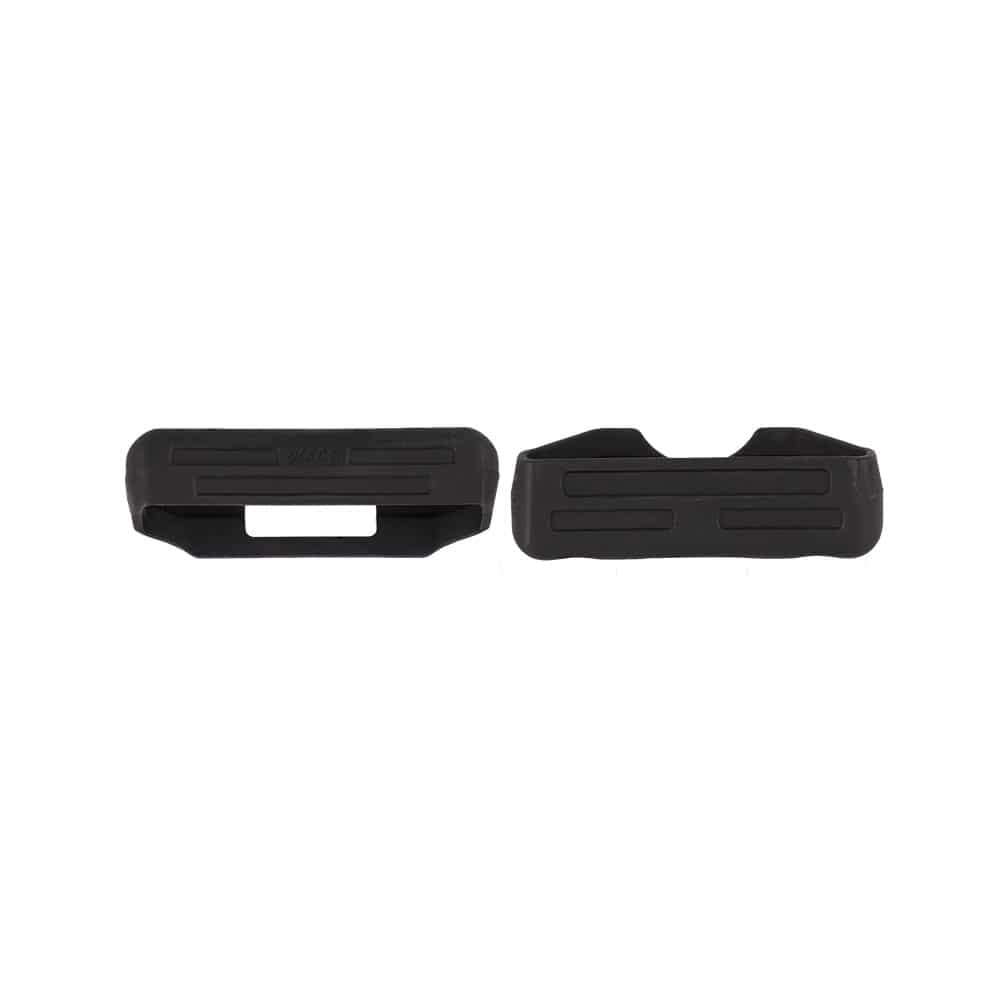

M2Logistics protection caps
Logistics protection cap set for the standard upper and lower plug-in module of the M2Smart® to increase fall protection.
ePop-Loq® adapter
ePop-Loq® adapter for attaching RFID readers from TSL via the upper and lower plug-in sliding mechanism of the M2Smart®SE.
Note: the ePop-Loq® adapter is not compatible with the M2Smart®SE with midrange scanner.
M2Griff5
Handle for the M2Smart®SE incl. scanner button. Easy attachment and removal without tools is possible.
Note: Suitable for the M2Smart®SE with short-range scanner. The upper and lower sliding mechanism can still be used for M2Modules. Loading in current DS2Smart® with M2Griff5 possible.
M2Griff5 SE
Handle for the M2Smart®SE incl. scanner button. Easy attachment and removal without tools is possible.
Note: Suitable for M2Smart®SE with midrange scanner. The upper and lower sliding mechanism can still be used for M2Modules. Loading in current DS2Smart® with M2Griff5 SE possible.
Bag with closure tab
Bag made of black fabric material with Velcro element for fixing the M2Smart®SE incl. swivel clip for fastening to the belt/waistband.
Note: Not for sale in North America
Bag
Bag made of black fabric material with Velcro element for fixing the M2Smart®SE for fastening to the belt/waistband.
Note: Not for sale in North America
Holster bag
Holster made of black fabric material for the M2Smart®SE incl. snaps for attachment to the belt. Suitable for devices with grip.
Note: Not for sale in North America
Similar Products
Products that might also interest you
M2Smart®SE 10 inch with safety components
for functional safety with 10 inch
An important building block on the way to the Smart Factory!
M2Smart®SE with M2UHF RFID
In times of IoT and Industry 4.0, the importance of permanently and seamlessly monitoring material flows in the production process is growing. The Smart Factory requires high data transparency in all phases of the value-added process. Many of these requirements are met by stationary RFID systems. Portable RFID readers are also increasingly being used to flexibly perform individual read or write operations as required. As a specialist for portable devices, ACD Elektronik GmbH takes this trend into account and introduces a new, mobile UHF RFID reader based on the M2Smart®SE.
Matching M2UHF-RFID App
The included M2UHF-RFID App offers a wide range of options to customize the system to individual needs. Besides common read/write functions, a comfortable tag localization and other useful features, e.g. various country regions can be set.
