M2Smart®SE Industrial

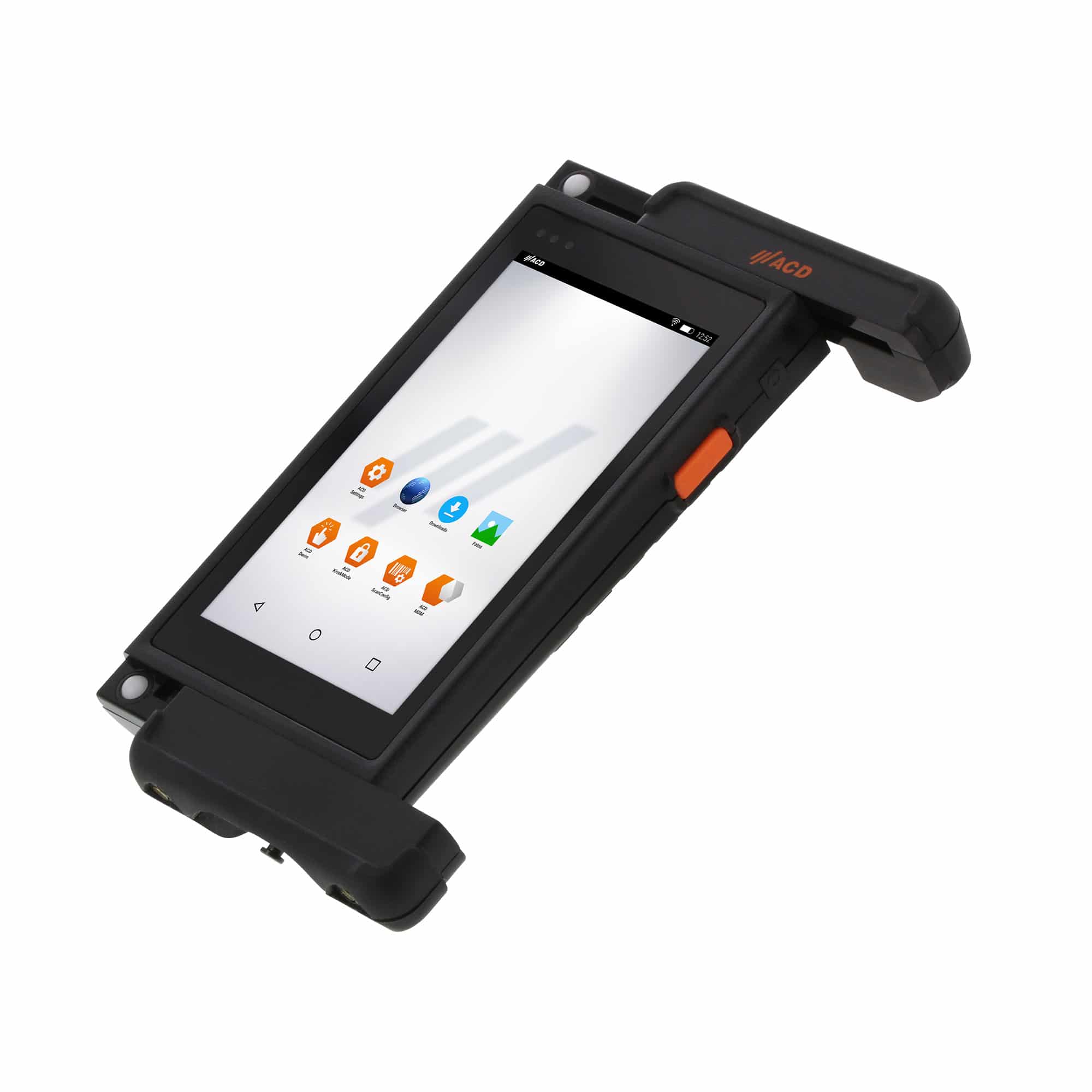

Mobile Handheld Computer M2Smart®SE Industrial

In 2020, the mobile handheld computer M2Smart®SE received the iF Design Award, the German Innovation Award and the Innovation Award of the state of Baden-Württemberg.

Our animation video offers a detailed presentation of the M2Smart®SE Industrial and its new patented modularly. Have a look!

Product Information

M2Smart®SE Industrial

The mobile handheld computer M2Smart®SE received the iF Design Award, the German Innovation Award and the Innovation Award of the state of Baden-Württemberg in 2020.
ACD wins various innovation awards with the M2SmartSE

Build Your Own Device: Flexibly and Modularly for Your Processes

  • Android™ Industrial+: Individually adaptable
  • Customer-specific modules including keyboards, RFID reader, printer, temperature sensor, handles, distance sensors, 1D scanners, 2D longrange Imagers, counting module, etc.
  • Slide mechanism for changing modules without any tools
  • Patented slide mechanism for customer-specific modules
  • Example: M2Safety5 with Emergency Stop and three-stage enabling switch for safety applications
  • Compact design for easy handling
  • 4.8 inch display with capacitive touchscreen
  • Quick change rechargeable battery with up to ?? hours between charges
  • Reliable wireless connection via Bluetooth and WLAN
  • Any number of additional Android™ apps can be used simultaneously

Develop Your Own Module

  • Authorized partner of the ACD Group
  • Development, production and sales of independently developed modules
  • Certified by German manufacturer for superior quality
  • End-to-end support in the development process
YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

M2Smart Video EN e1663847180484
M2Smart goes Omlox

Technical Data

All data at a glance

System
  • NXP® i.MX8M Mini, 4x Cortex A53 (4x 1,8 GHz) and 1x Cortex M4 (1x 400 MHz)
  • 16 GB Flash, larger memory optionally available
  • 2 GB RAM, larger memory optionally available
  • Android™ Industrial+
Display
  • 4,8″ color TFT Display with LED backlight
  • 1280 x 720 pixels, 280 cd/m²
  • 3 status LED
  • Capacitive, surface hardness according to MOHS category 5-6
Power supply
  • Quick-change rechargeable battery, li-ion with 22.8 Wh (6,000 mAh/3.8 V)
  • Docking station incl. battery charger for spare battery
Module Authorization

The following power supplies and module interfaces are available:

  • For lower module:
    3,3 V/200 mA
    USB 2.0
    Generated by micro-controller: RS232, I2C, SPI, ADC, PWM
  • For upper module:
    3,3 V/200 mA, ~3 bis 4,3 V (battery voltage)/1000 mA, ~3 bis 5,2 V (operation docking station)/1000 mA
    USB 2.0
    Generated by micro-controller: RS232, I2C, SPI, ADC, PWM
Device
  • Housing: ABS/PC
  • Protection class: IP65
  • Device dimensions: 174 x 82 x 28 mm (L x W x D)
  • Weight: Ca. 390 g
  • Operating temperature: -20 °C bis 50 °C/-4 °F to 122 °F
  • Storage temperature: -20 °C bis 60 °C/-4 °F to 140 °
Keyboard
  • Side On-/Off key
Options
  • 5 MP auto-focus camera with lighting
  • WLAN according to IEEE 802.11 a/b/g/n/ac/d/h/e/i/r/k/w/v (2,4 GHz/5 GHz) incl. BT-compatible close-range network 5.0
  • WLAN Security: WLAN Security:WEP, WPA, IEEE802.11i (Personal and Enterprise), WPA2, WPA2-PSK, 802.11x: authentication
  • Integrated HF-RFID/NFC Reader, 13,56 MHz
  • M2Temperature: Attachable temperature sensor to measure core and surface temperature; changing without tool
  • M2Key16: Attachable silicone keyboard with 16 keys; changing without tool
  • SOTI® certification

Product Equipment

Accessories

M2smartSE

DS2Smart® charging and transmission box

DS2Smart® charging and transmission box

M2smartSE

DS2Smart® charging box

For charging the M2Smart®SE as well as a replacement rechargeable battery

DS2Smart Developerbox

DS2Smart® Developer box

Housing with LED Display for charging the M2Smart®SE, as well as charging a replacement battery. Incl. led out USB cable for connection with a PC.

DS2Battery Charging box 2-fold

DS2Battery Charging box 2-fold

Housing with LED indicators for charging two spare batteries of the M2Smart®SE.

m2smart-se-accessories-bag-01

Bag with closure tab

Bag made of black fabric material with Velcro element for fixing the M2Smart®SE incl. swivel clip for fastening to the belt/waistband.
Note: Not for sale in North America

M2SmartSE bag for devices with handle

Bag

Bag made of black fabric material with Velcro element for fixing the M2Smart®SE for fastening to the belt/waistband.
Note: Not for sale in North America

M2SmartSE holster bag

Holster bag

Holster made of black fabric material for the M2Smart®SE incl. snaps for attachment to the belt. Suitable for devices with grip.
Note: Not for sale in North America

Kapazitiver Touchstift

Capacitive touch pen

Capacitive touch pen (length approx. 11 cm; diameter approx. 0.6 cm) for easy operation of the M2Smart®SE.

m2smart se accessories display protection film low reflection

M2Smart® display protection film 4.8 inch / low reflection

Low-reflection screen protector protects the display of the M2Smart® 4.8 inch.
Note: Can be applied by ACD or by the customer.

m2smart se accessories display protection film

M2Smart® display protection film 4.8 inch

Display protection film protects the display of the M2Smart® 4.8 inch.
Note: Can be applied by ACD or by the customer.

Similar Products

Products that might also interest you

M2SmartSE with M2safety Conditioning Monitoring

M2Smart®SE Industry: Technical Upgrade

Android™ Industrial+

The ACD patented solution, as well as the modularity and the standard interfaces allow many plug-in modules, such as emergency stop, three-way enabling switch, RFID reader (UHF, HF, LF), distance sensors, temperature modules and many more. The mentioned plug-in modules can all be customized and implemented. The individual modules can be exchanged without tools via the plug-in-sliding mechanism, thus enabling very efficient, economical and flexible work in all industrial sectors. The modularity is still unique on the market.

Software upgrade to Android™ Industrial+

In combination with a more powerful NXP® processor, the M2Smart®SE with Android™ Industrial+ offers an enormous increase in performance and speed. All other advantages of the proven Android™ Industrial+ platform will of course remain: A modern user interface familiar from Android smartphones, together with the high quality of the German manufacturer. In contrast to the competition, which often relies on products from Asian manufacturers, Android™ Industrial+ can be specifically adapted to customer requirements at any time. Android™ Industrial+ is a very secure operating system that operates 100% independently of Google services and where the security of customer data is a top priority. The sources are located at the manufacturer in Germany, which guarantees a long-term ability to deliver and thus a high investment security. The simple app programming and special ACD Android™ Apps, such as EasyToConfig for easy setup and configuration of mobile devices, enables cross-process application at the customer’s site. ACD also offers an extended security and update service. The advantage of communicating directly and easily with the German manufacturer is irreplaceable and unique on the market.
