Mobile Workstation MAX Plus for more Work Space

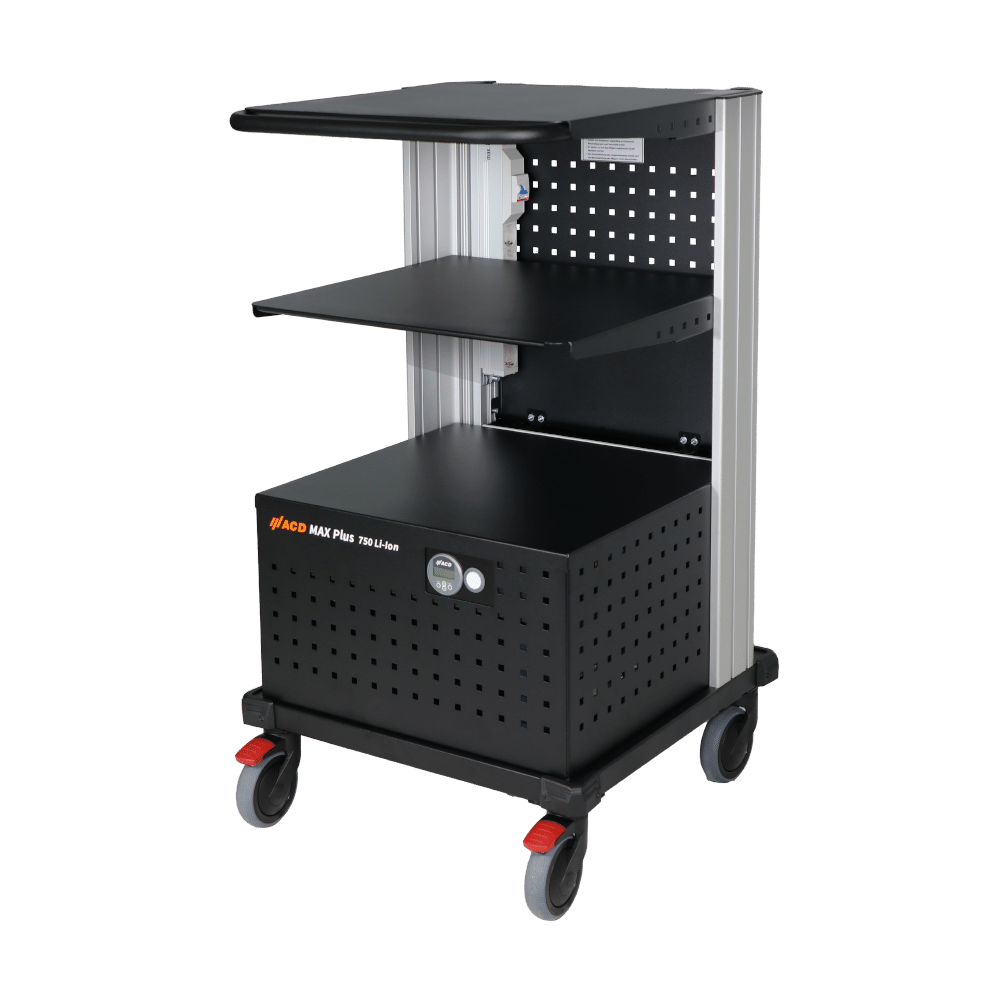

Mobile Workstation MAX Plus

MAX Plus

40 % more space for IT equipment and other accessories.

If you are interested, please feel free to contact us.

Product Information

For the “plus” in space – the MAX Plus

  • 40 % more storage space than the MAX BE for technical equipment
  • Flexible modular system with countless options
  • Variable ergonomic height
  • Proven battery management system
  • Country-specific versions are possible
  • FI circuit breaker
  • Suitable for shift operation
  • Smooth running hard floor casters (industrial grade)

A short video shows some of the configuration options for the MAX mobile workstation, allowing it to be individually adapted to a wide range of requirements and needs.

Technical data

The data of the MAX Plus

Basic structure
  • Aluminum base frame with four swivel castors (two with parking brake)
  • Working height variably adjustable; standard 1,125 mm
  • Easy to move due to ergonomic handle and large rollers
  • Very stable due to external castors and low center of gravity
  • Dimensions: 631 x 1,125 x  632 mm (W x H x D)
  • Weight: 90 – 95 kg (depending on version)
  • Temperature range 0 °C to + 40 °C
Equipment variants
  • MAX Plus 750 Li-Ion
    OnBoard sinus power inverter 230 V AC/800 VA
  • MAX Plus 1200 Li-Ion
    OnBoard sinus power inverter 230 V AC/1200 VA –
    Laser printer-capable
Equipment MAX Plus
  • Support: 567 x 542 mm (W x D); support height adjustable
  • 40 % more storage space than MAX BE for technical equipment
  • Rear panel multifunction with document pocket
  • OnBoard charger: 16 A (for MAX Plus 750 Li-Ion), 25 A (for MAX Plus 1200 Li-Ion)
  • Lithium iron phosphate battery 12,8 V/100 Ah (maintenance-free); 2x on MAX Plus 750 Li-Ion/MAX Plus 1200 Li-Ion
  • Integrated battery management system for cell balancing and cell monitoring function
  • Bypass circuit during charging
  • 5-/6-way Schuko power strip (country-specific) with residual current device (RCD)

Case Study

Our services with Goldhofer

With the current solution, significantly fewer ground conveyors are required, routes are saved and throughput has been significantly increased. The individual load carriers in the goods receiving area now have to be moved significantly less. In addition, the employees significantly reduced their distances through the MAX.
