Project Description

Mobiler Arbeitsplatz MAX TK

Mobile Workstation MAX TK

MAX TK

The MAX TK mobile workstation with special thermal insulation is particularly suitable for refrigerated storage areas and in deep-freeze storage down to -28 °C.

Product Information

Mobile Workstation MAX TK

  • Flexible modular system with countless options
  • Variable ergonomic height
  • Suitable for deep freezing (down to -28° degrees)
  • Special thermal insulation
  • Uninterrupted operation for up to 8 h
  • Country-specific versions with all EU approvals and CSA/US approval
  • Suitable for shift operation
  • Smooth running hard floor casters (industrial grade)

A short video about the use of the MAX mobile workstation at Goldhofer AG in Memmingen shows very clearly how travel time can be saved and IT equipment can be made mobile.

Technical Data

The data of the MAX TK

Basic structure
  • Aluminum base frame with four swivel castors (two with parking brake)
  • Working height variably adjustable; standard 1,130 mm (DIN 4549)
  • Easy to move due to ergonomic handle and large rollers
  • Very stable due to external castors and low center of gravity
  • Dimensions: 1,130 x 550 x 580 mm (H x W x D)
  • Weight approx. 67 – 113 kg (depending on version)
Equipment MAX TK
  • Support: 500 x 440 mm (W x D); support height adjustable
  • Multifunctional rear panel
  • OnBoard charger 10 A in TK version
  • 2x fleece batteries 12 V/60 Ah (maintenance-free) with battery insulation
  • 24 V DC connection incl. plug
  • Battery controller to display the battery capacity incl. acoustic and visual warning when reaching the discharge voltage with automatic shutdown (incl. deep discharge protection)
  • Heat insulation
  • Temperature range -28 °C to +40 °C

Accessories

Additional features for practical work

The MAX TK mobile workstation offers countless options and accessories. If there is nothing suitable in our standard accessories, please do not hesitate to contact us!

To the accessories
MAX Zubehör
Mobiler Arbeitsplatz MAX

Case Study

Our services with Goldhofer

With the current solution, significantly fewer ground conveyors are required, routes are saved and throughput has been significantly increased. The individual load carriers in the goods receiving area now have to be moved significantly less. In addition, the employees significantly reduced their distances through the MAX.

Goldhofer

Similar products

Find more MAX variations

MAX 200

MAX 200

Mobile workstation as single column variant

Configure now
MAX Li-Ionen

MAX Li-Ion

Mobile workstation with modern lithium-ion technology

Configure now

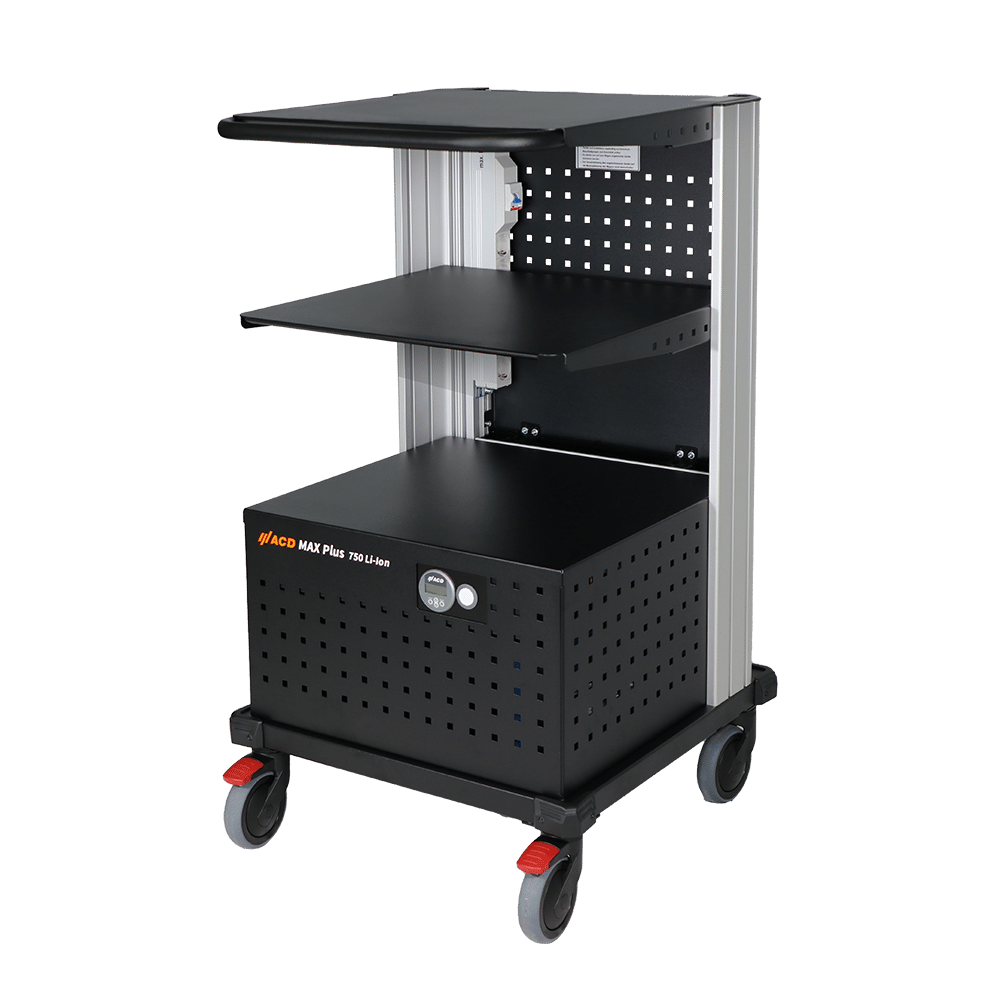

Mobile Workstation MAX PLUS
