Front view MFT15SE Vehicle Mount Terminal with 15 inch display and Windows operating system

Vehicle Mount Terminal MFT15SE

MFT15SE Forklift Terminal and Vehicle Terminal with 15″ display

The sturdy all-rounder from our MFT1xSE series ensures optimized processes for use with order-picking vehicles in warehouses, for logistics, in incoming and outgoing goods, during stocktaking cycles or in industrial applications. The MFT15SE Forklift Terminal with large 15″ touchscreen provides ample display room for complex applications with excellent legibility. In this way the MFT15SE ensures simplified handling together with intuitive entry and error-free working.

Product Information

MFT15SE

The MFT15SE Vehicle Terminal features the following key data:

  • Stable aluminum housing with chemically hardened front pane
  • Robust, suitable for use in freezer areas and outdoors
  • 15“ TFT-Farbdisplay XGA mit LED Backlight; Touchscreen: resistiv
  • Secure and solid operating system Windows® and IGEL OS
  • Integrated energy buffer for short-term bridging of power breakdowns
  • Flexible connection options: USB 2.0/3.0, RS232
  • Countless options: Integrated rechargeable battery, various mounting brackets for easy and reliable vehicle mounting, keyboard variants
  • Virtual keyboard
  • Compatible with backhand scanner HasciSE
YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

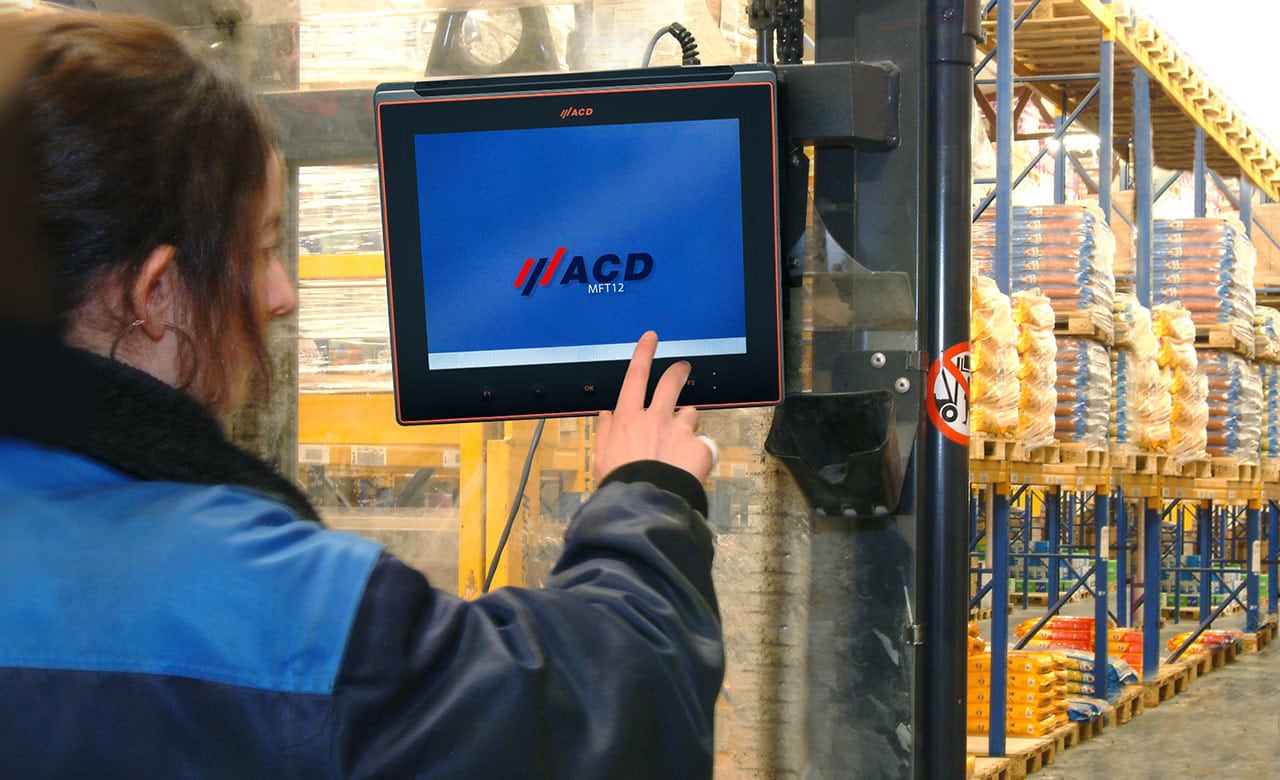

Vechicle Mount Terminal MFT1x

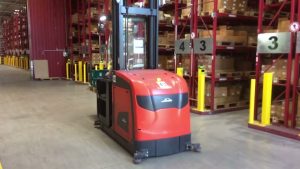

Kommissionierung im Lager mit dem Staplerterminal MFT12

Technical Data

All data at a glance

System
  • Processor: Intel Atom QuadCore up to 4x 1.8 GHz (x5-E3940, Apollo Lake)
  • Windows® 10 IoT Enterprise, Windows® 11 IoT Enterprise or IGEL OS
  • Memory for Windows® 10 IoT Enterprise and IGEL OS:
    4 GB RAM, 64 GB Flash – optionally 8 GB RAM, 128 GB Flash
  • Memory for Windows® 11 IoT Enterprise:
    8 GB RAM, 64 GB Flash – optionally 128 GB Flash
  • BIOS: UEFI BIOS, update-capable, bootable from LAN or USB as standard
Device
  • Housing: Aluminium, powder-coated
  • Protection class: IP54 (optional IP65)
  • Resilience: Shock and Vibration according to EN 60068-2 Part -6, -27
  • Device dimensions: 366 x 311 x 71 mm (W x H x D), without accossories
  • Weight: Ca. 4.9 kg, without accessories
  • Operation temperature: -30 °C up to 45 °C/-22 °F to 113 °F
  • Storage temperature: -30 °C up to 70 °C/-22 °F to 158 °F
  • Relative humidity: 5 % to 95 % (in operation), non-condensing
Interfaces
  • Ethernet 100-BaseT/10-BaseT Autoswitch
  • RS232
  • 1 x USB 3.0
  • 3 x USB 2.0
  • Integrated speaker in speech output quality
  • Audio output/microphone input via jack plugs
Options
  • WLAN according to IEEE 802.11 a/b/g/n/ac/x/k/v/r (2,4 GHz/5 GHz) incl. BT-compatible close-range network
  • WLAN Security: WPA, IEEE802.11i (Personal and Enterprise), WPA2, WPA2-PSK 802.1x: PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, EAP-TLS, EAP-TTLS, EAP-FAST, LEAP
  • Integrated battery for up to 1.5 hours of operation
  • EasyToPush: Cable- and battery-free pushbutton that can be used in conjunction with the ACD EasyToPush app. This eliminates the need for complex wiring, such as for external pushbuttons
  • SOTI® MobiControl; more about SOTI® MobiControl
Display
  • 15″ color TFT display with LED backlight, 1024 x 768 pixels, 400 cd/m², 2 Status LEDs
  • Touchscreen: Resistive, minimum surface hardness of 3H
  • With robust, chemically hardened beaming glass
  • Integarted graphic unit, DirectX12 support
Keyboard
  • Virtual on-screen keyboard
  • 5 freely programmable function keys
Power supply
  • 9 V to 72 V DC (electrically isolated)
Special features
  • Integrated energy buffer for short-term bridging of power breakdowns
  • 2 integrated antennae
  • Fan-less design
  • Device start-up and shutdown via freely definable function keys (ATX function) and via ignition
  • Sunlight readable
  • Various accessories (mounting kits, external keyboards, quick exchange system, HasciSE)

Product Equipment

Accessories

MFT Power Pack

Power pack

Power pack 24VDC 3A with SubD plug connection cable.

MFT15 Cable

Voltage Supply Cable (3 wired)

Voltage Supply Cable (3 wired).

MFT12/15 Mounting Kit

Mounting kit RAM Mount

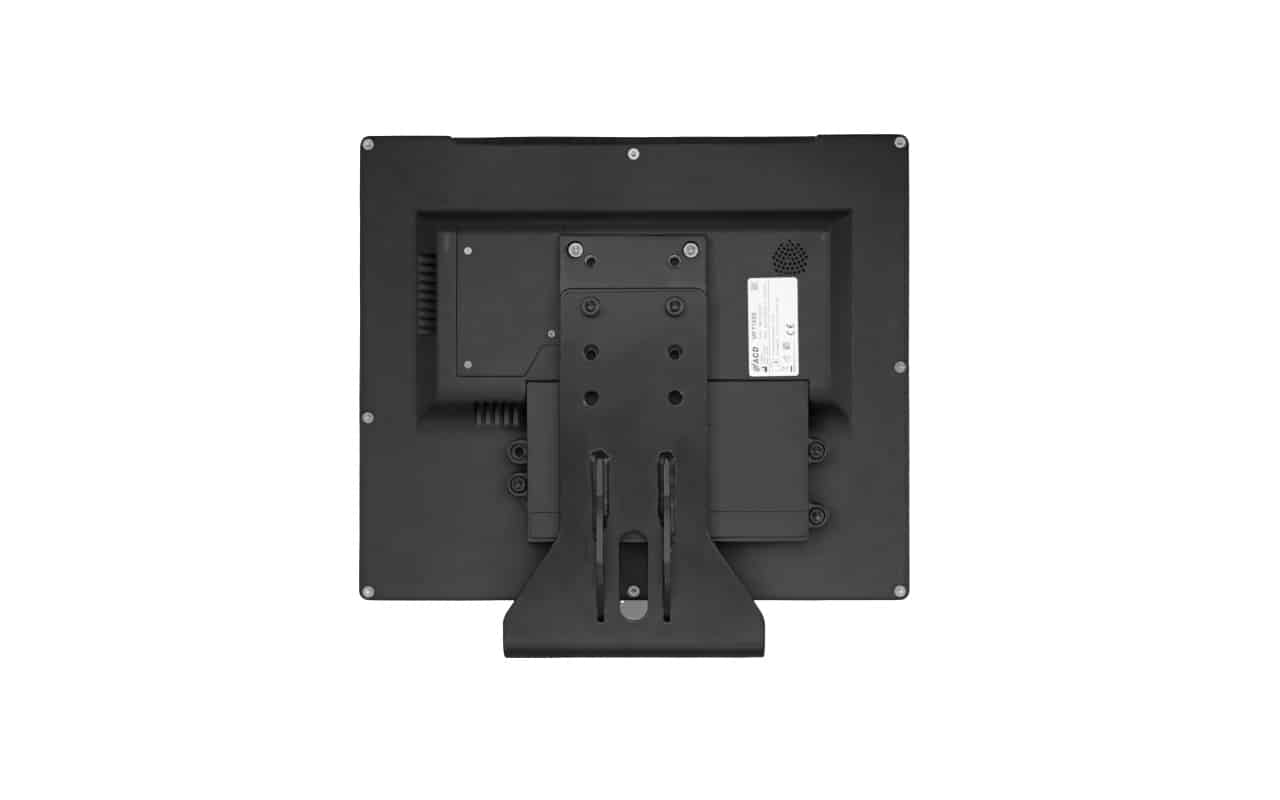

Mounting device RAM Mount for fixing the terminal on a vehicle. Vertical and horizontal mounting is possible.

Mounting Kit MFT12/15

Mounting kit RAM Mount Quick Change System

Mounting kit RAM Mount Quick Change System.

MFT1x Mounting kit RAM Mount with holding clip

Mounting kit RAM Mount with retaining clip

Vehicle mount RAM Mount for mounting the terminal MFT1xSE. Possibility of vertical and horizontal adjustment.

MFT Fast Change WIre

Quick Change System Power Supply Cable (3 wire)

Quick Change System Power Supply Cable (3 wire).

Fast Change Adapter

Quick Change System Adapter (3 wire)

Quick Change System Adapter (3 wire).

2023-07_Adapterbügel SE

Adapter bracket

Adapter bracket.

2023-07_Montagekit Adapterbügel SE

Mounting kit Adapter bracket

Adapter bracket incl. mounting kit for mounting the MFT1xSE to a MFT9xx mounting bracket.

Keyboard Mounting Device

Keyboard Mounting Device – without keyboard

Robust mounting device made of metal for placing an external ML keyboard.
Consisting of mounting device and mounting plate.

Keyboard Black

ML Keyboard black

ML Keyboard black.

Sideward Keybaord

Sideward Keyboard with USB-Hub

MFT1xSE sideward Keyboard with USB-Hub.

Sideward Keybaord

Sideward Keyboard without USB-Hub

MFT1xSE sideward Keyboard without USB-Hub.

Mounting Kit MFT10

Mounting Kit for sideward Keyboard

Mounting Kit for MFT1xSE sideward Keyboard.

Interface cover IP65

Interface cover IP65

Interface cover to increase the protection class to IP65.

Spout Set

Spout Set

Spout Set for interface cover IP65.

Strain Relief

Strain relief

Optional cable strain relief for rear mounting on the MFT1xSE (IP65 variant). The strain relief is mounted instead of the interface cover. The effects on the MFT1xSE IP protection class must be observed.

ACD EasyToPush - Radio button

ACD EasyToPush – Radio button Black/Blue/Green/Yellow

Consisting of an ACD EasyToPush radio button installed in a housing. The ACD EasyToPush radio button is only available under Windows® 10 IoT Enterprise.

ACD EasyToPush - USB Gateway

ACD EasyToPush – USB Gateway

Consists of a USB gateway for connection to a MFT1xSE for pairing ACD EasyToPush wireless pushbuttons. The ACD EasyToPush USB Gateway is only available under Windows® 10 IoT Enterprise.

Similar Products

Products that might also interest you

MFT15SE vehicle mount terminal deep freeze area 15 inch display

The 15″ terminal for special requirements

Stacker terminal MFT15SE

The MFT15SE truck-mounted terminal is extremely flexible and fits perfectly almost anywhere, in any forklift, vehicle, company or situation. It has a compact design, which minimizes visibility restrictions, and is based on the latest WLAN standard for optimal roaming behavior. It also has a wide range of different accessories.

High ease of use with large 15 inch display

With its wide range of accessories, the MFT15SE forklift terminal makes daily tasks more efficient, safe and convenient. The extra large color display provides significantly more space when displaying complicated applications and at the same time ensures good readability. Warehouse logistics processes can be worked out error-free thanks to the uncomplicated handling. In addition, the logistics device is compatible with the HasciSE backhand scanner.

The picking vehicle terminal is equipped with a virtual on-screen keyboard to ensure intuitive input. However, a glove or a special pen can also be used to work directly on the terminal surface. In addition, the terminal has versatile connectors that provide strain relief for all cables on the truck terminal. The terminal is switched on by ignition voltage, with the advantage that when the ignition key is removed, the terminal system is either shut down or locked.
