Project Description

Pick By The Voice

Wearables

Pick by Voice with Voxter® Elite+

Paperless order picking is consistently implemented with the Voxter® Elite+ Pick by Voice solution and matching voice software. Boost the efficiency and quality of your order picking by standardizing pick processes. This will give you access to the latest inventory levels at all times, saving time-consuming stocktaking.

Product Information

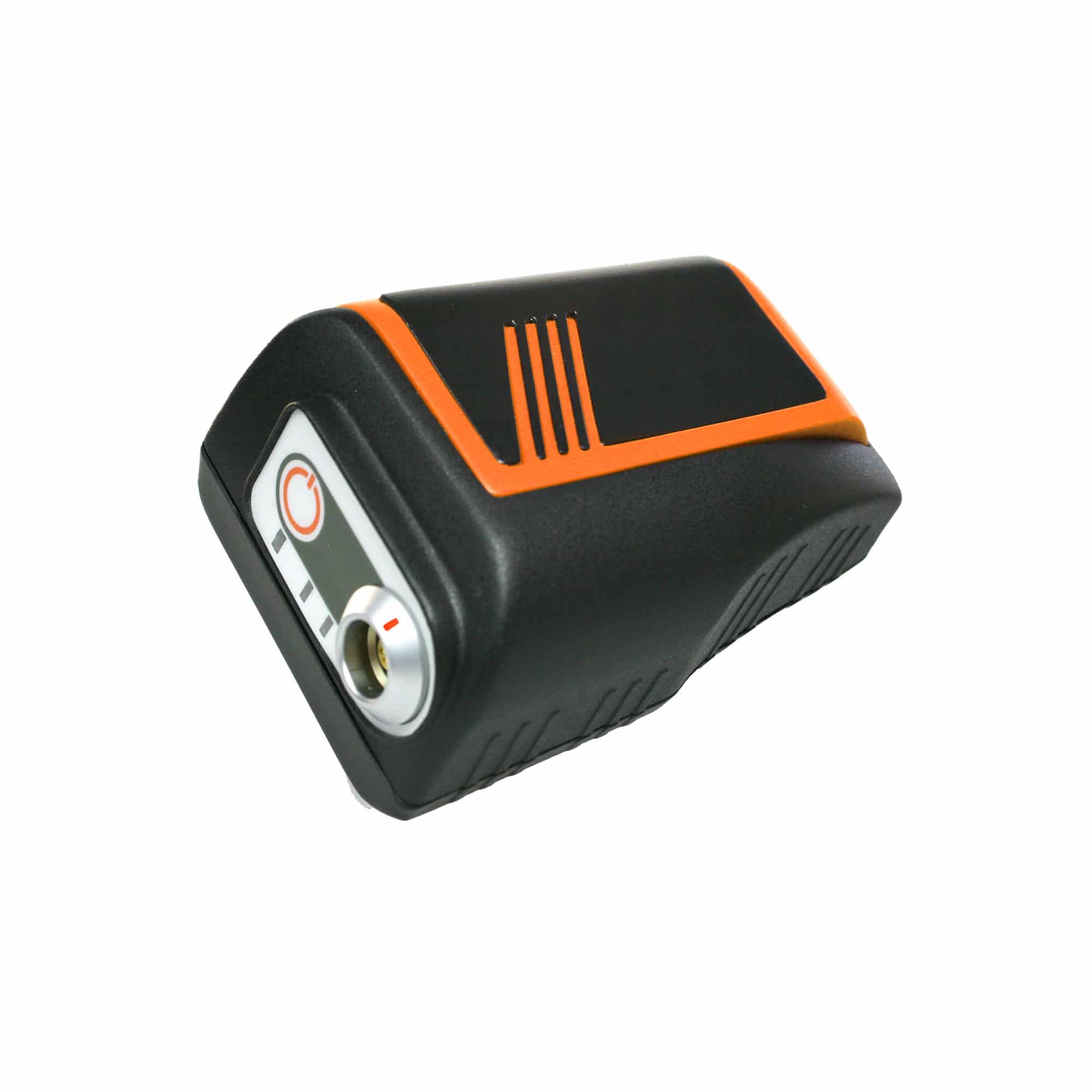

Pick by Voice with Voxter® Elite+

Voice-Client Voxter® Elite+ features the following key data:

  • Voice-controlled working: Hands and eyes are free for the essential work steps
  • Can be operated with work gloves or gloves for cold environments
  • Improved work safety
  • On and off button
  • Sturdy belt clip
  • Protection rating IP67 (protection against dust and temporary immersion)
  • Ambient temperature as low as -10 °C
  • Android™ Industrial+ or Windows® Embedded Compact (EC7)
  • Long battery runtime
Learn more

In optimum combination with Lydia® voice software:

  • Local control of speech recognition and voice output
  • Speaker-independent voice output; also recognizes dialects
  • Intuitive voice commands
  • Low training overhead

Flexible use

The Voxter® Elite+ mobile terminal is especially flexible and versatile to use. Possible application areas are:

  • Pick by Voice: Voice-controlled order picking, multi-order picking, stocktaking, admission into warehouse, replenishment, automated order placement. For more information read the relevant Whitepaper.
  • Check by Voice: Quality control, service and maintenance

Service portfolio

Sales through our partner topsystem Systemhaus GmbH. For further information see under Technology Partner or visit topsystem Systemhaus GmbH.

Less
YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

Technical Data

All data at a glance

System
  • NXP®i.MX6 Dual Lite processor, 1 GHz (DualCore, Cortex A9)
  • 4 GB Flash
  • 1 GB RAM
  • Windows® Embedded Compact (EC7)
  • Android™ Industrial+
Keys
  • ON/OFF button
Interfaces Windows® Embedded Compact (EC7)
  • WLAN according to IEEE 802.11a/b/g/n (2,4 GHz/5 GHz); CCXv4
  • WLAN Security: WEP, WPA, IEEE802.11i (WPA2), WPA2-PSK, Personal and Enterprise,
    802.11x: PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP
  • BT-compatible close-range network
  • Robust headset connector
  • Internal memory card
Other
  • 3 twin-colour LEDs for status display
Device
  • Housing: ABS
  • Protection class: IP67
  • Device dimensions: 112 x 68 x 51 mm (widest point);
    L x W x H
  • Weight: Approx. 285 g
  • Operating Temperature: -10 °C up to 50 °C/14 °F to 122 °F
  • Storage Temperature: -20 °C up to 50 °C/-4 °F to 122 °F
Power supply
  • Quick-change rechargeable battery, li-ion with 19.2 Wh (5,200 mAh/3.7 V)
  • Docking station
  • Battery charger
Interfaces Android™ Industrial+
  • WLAN according to IEEE 802.11a/b/g/n (2,4 GHz/5 GHz)
  • WLAN Security: WEP, WPA, IEEE802.11i (WPA2),WPA2-PSK, Personal and Enterprise,
    802.11x: PEAP-MSCHAPv2, EAP-TLS
  • BT-compatible close-range network
  • Robust headset connector

Product Information

Accessories

Voxter Accessories

DSVoxter Elite+

This Docking station is a battery charger and a PC-connection at once. Wall fastening is possible.

Voxter multiple charger

Voxter® Elite+ multi charger for 2-fold

Multi charger with different insertions. Wall fastening is possible

Voxter multiple charger

Voxter® Elite+ multi charger for 8-fold

With these battery charger you can recharge up to 8 batterys at the same time.

Voxter Battery

Voxter® Elite+ replacement battery

Voxter Elite+ replacement battery

Voicewear

VoiceWear

Voice Wear to use pick by voice without headset

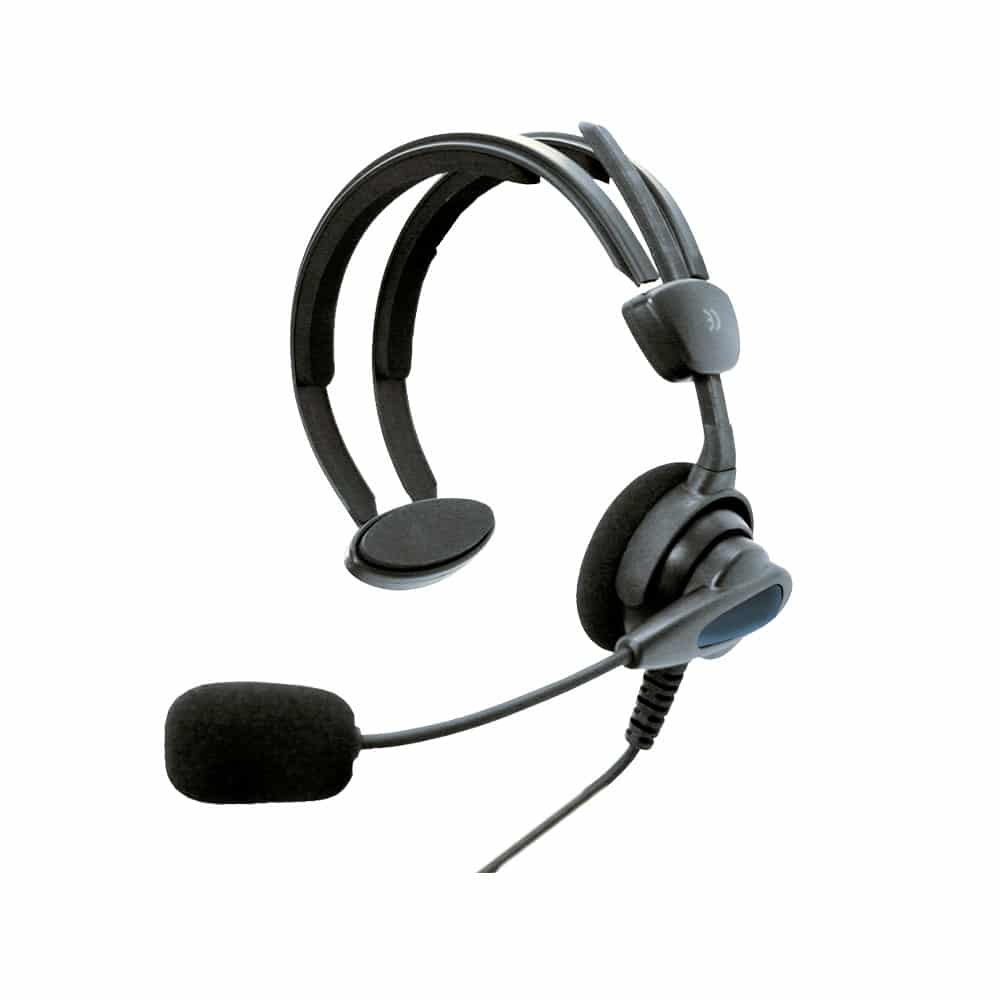

Headset

Headset

Headset

New
New as of June 2019

The Voxter Elite+ voice client is now available with the Android™ Industrial+ operating system.

Pick By Voice Client – Voxter Elite
