Backhand scanner HasciSE AR

HasciSE AR: ergonomic industrial-grade Bluetooth scanner with up to 14-meter scanning range

Our HasciSE AR handheld barcode scanner is the optimal “hands-free” solution for all processes that require a wide range of scanning reach. Its performance range includes scanning a delivery bill at close range as well as scanning a distant barcode from the cab of a forklift truck. Attaching the HasciSE AR via robust push buttons gives you flexibility in your choice of carrying option.

Product Information

HasciSE AR backhand scanner

The HasciSE AR backhand scanner features the following key data:

  • Logistics wearable: one of the lightest and smallest in its class
  • Fast pairing via BT-compatible short-range radio and ACD EasyToConnect 2.0/ACD HasciDataService
  • Various wearing options due to sturdy snap fasteners
  • High-performance advanced range imager with a scanning range of 5 cm to 14 m
  • Long battery life (9,000 scans)
  • Scan triggering via finger switch or scan button
  • Scan feedback: audible, haptic, and visual
  • Compatible with all Bluetooth-enabled devices with Bluetooth 4.0 and higher
  • Compatible ACD devices: mobile handheld computers M2Smart®SE/M270SE, vehicle mount terminals MFT1x/MFT1xSE, voice client with Android™ Industrial+
YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

Hasci backhandscanner
Backhand scanner HasciSE simple pairing
HasciSE, practical fastening on retractable cord

Technical Data

All data at a glance

Device
  • Housing: ABS
  • Protection class: IP54
  • Dimensions: 58 x 45 x 16 mm (L x W x H)
  • Weight: approx. 49 g
  • Operating temperature: -20 °C to 50 °C
  • Charging temperature: 10 °C to 40 °C
  • Storage temperature: -20 °C to 20 °C
Barcode scanner
  • 2D advanced range Imager SE5500 (integrated into the housing)
  • Reading range from approx. 5 cm to 14 m
  • Optionally with the possibility of reading dot codes
Interfaces
  • BT-compatible short-range radio 4.0
Display
  • Status LED
Power supply
  • Rechargeable battery, lithium-polymer with 2.405 Wh (650 mAh/3.7 V)
  • Docking station
Special features
  • Scan triggering via finger switch and button
  • Scan feedback via audio, vibration and visuals
  • Pairing via BT-compatible short-range radio (V4.0)
  • Easy to pair with ACD EasyToConnect 2.0/ACD HasciDataService
Compatibility with ACD devices
  • Mobile Handheld Computer M2Smart®SE
  • Mobile Handheld Computer M270SE
  • MFT1x/MFT1xSE series

Product equipment

Accessories

DS Hasci

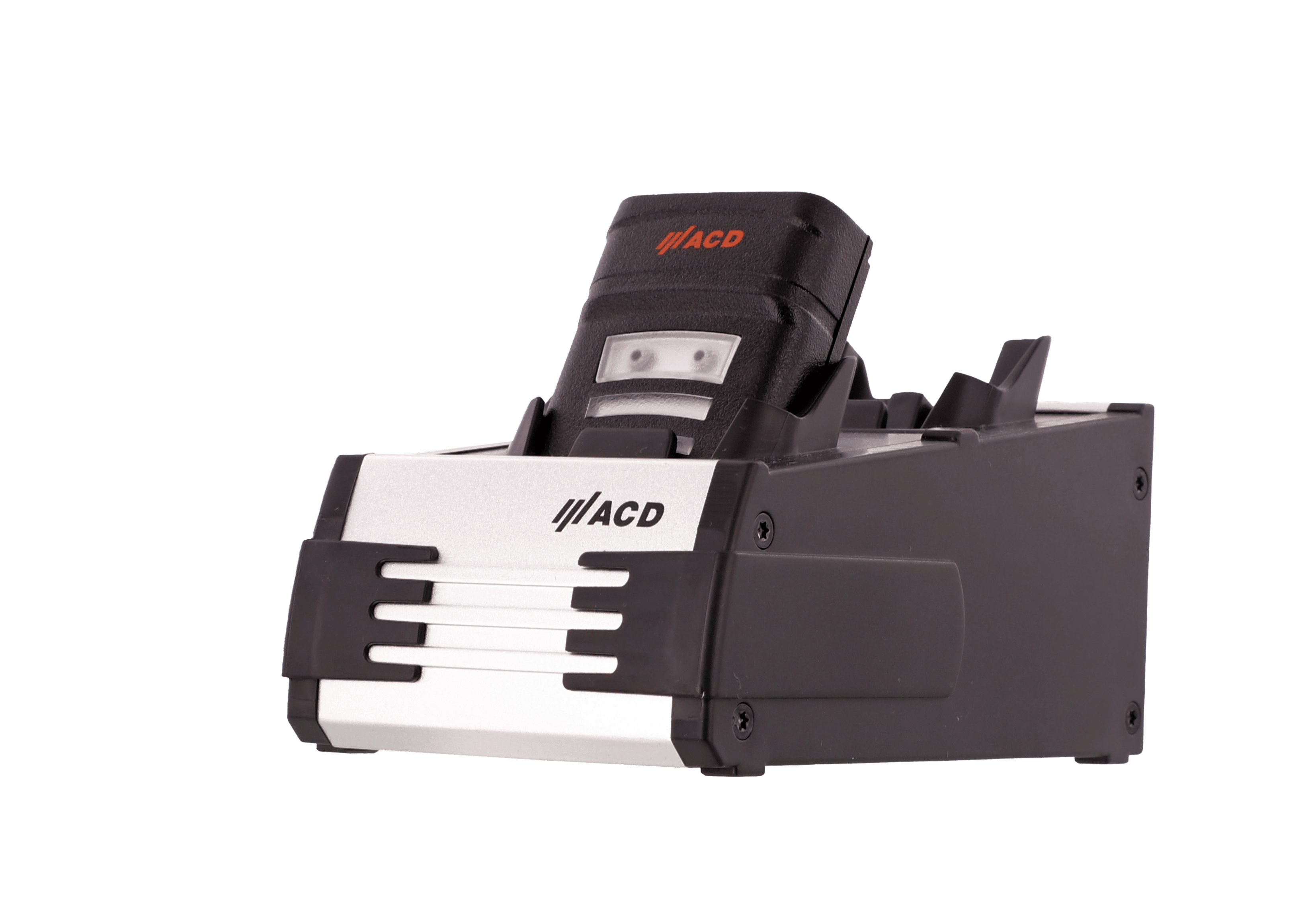

DSHasciSE charging box (2-fold)

Housing with LED displays for charging two HasciSE.

DSHasciSE charging box (10-fach)

DSHasciSE charging box (10-fold)

Housing with LED displays for charging 10 HasciSE.

Hasci zipper round

HasciSE Zipper round

Round zipper for attachment to the HasciSE mounting plates.

Hasci zipper square

HasciSE Zipper square

Square Zipper for attaching to the HasciSE mounting plates.

2022 11 Aufnahmeplatte 4 e1669638486242

HasciSE AR mounting plate

Mounting plate for the HasciSE AR for attachment to the zippers.

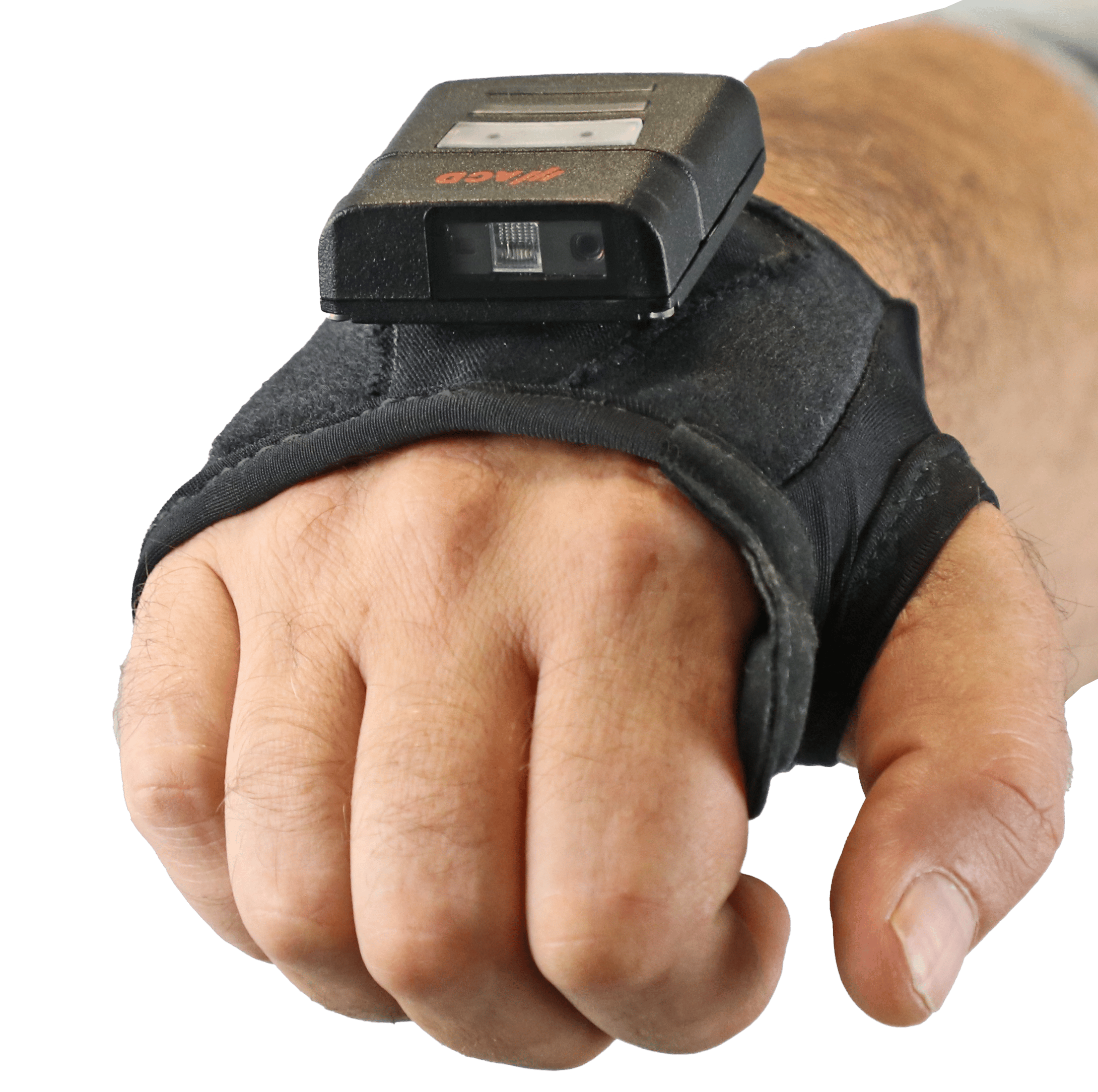

ACD hand strap for backhand scanner

ACD hand strap right incl. finger switch

ACD hand strap incl. finger switch for scanning, for fixing the HasciSE on the back of the hand
Available sizes: S, M/L

ACD hand cuff for backhand scanner

ACD hand cuff right incl. finger switch

ACD hand cuff incl. finger switch for scan triggering, for attaching the HasciSE to the back of the hand.
Available sizes: 7, 8, 9, 10

Backhand scanner HasciSE hand cuff left

ACD hand cuff left incl. finger switch

ACD hand cuff incl. finger switch for scan triggering, for attaching the HasciSE to the back of the hand.
Available sizes: 7, 8, 9, 10

Similar products

Products that might also interest you

Downloads
Files for download
2022 11 HasciSE AR Logistik 2

HasciSE AR

Never get out of again: Hands-free scanning over long distances

ACD backhand scanner with up to 14 meters scanning range

Easily scan barcodes on goods from a distance of well over 10 meters without having to get out of the forklift? And save time at the same time, because you don’t have to reach for the handheld scanner? With the ergonomic backhand scanner from ACD Elektronik GmbH is this now reality:
Comfortably attached to the back of the hand with low weight and a scanning range of up to 14 meters, work in the warehouse is revolutionized. Barcodes can be scanned quickly and conveniently from the vehicle, “hands-free” and without the hassle of picking up and setting aside a handheld scanner. For the user, maximum scanning comfort and efficient work are guaranteed.

Learn more
Small device, big performance

ACD’s HasciSE AR backhand scanner is one of the pioneers in the logistics wearables segment. Its light weight, handy design and the new advanced range engine make the scanning process significantly easier. Reaching for goods is done without having to put the scanner aside, gaining valuable time in the daily work routine. The HasciSE AR is therefore ideally suited to areas where “hands-free” work is required. The industrial-grade HasciSE AR is characterized by high robustness and quality, effectively saving costs and minimizing the risk of failure.

Hands-free scanning from a greater distance thanks to advanced range technology

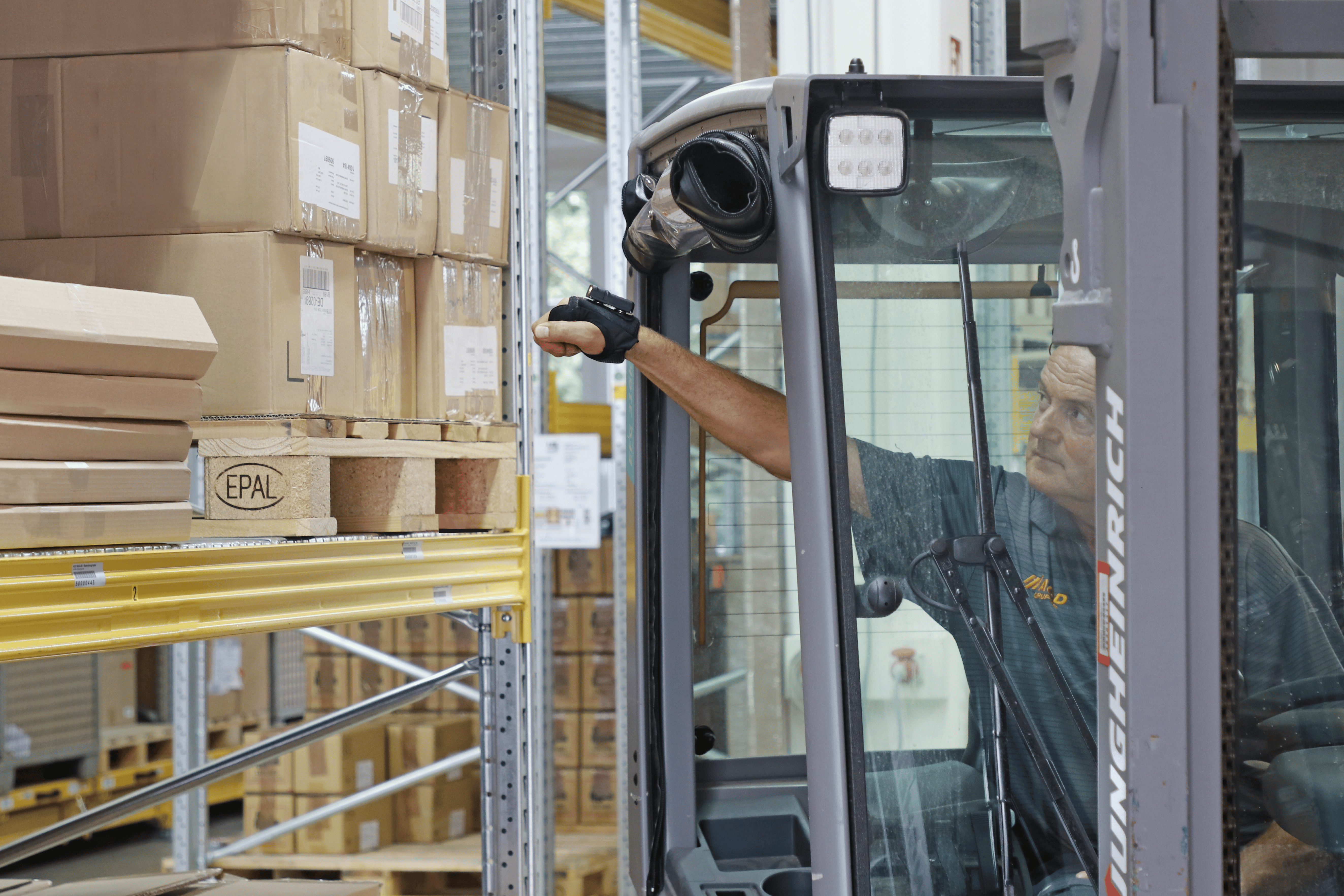

The 2D advanced range imager integrated in the HasciSE AR, with the powerful SE5500 scan engine, enables convenient scanning from a distance of approx. 5 centimeters up to 14 meters from the object. The wearable HasciSE has long proven itself in close-range applications, such as small parts picking. With the product renewal, ACD Elektronik is targeting new areas of application where both, a greater scanning range and hands-free working are required. For example, when working from a forklift in a high-bay warehouse, the HasciSE AR proves to be extremely adept and also scores in terms of occupational safety: both hands remain free to operate other work equipment. Where different devices had to be used in the past, one scanner now fulills all requirements and ensures satisfied employees.

Maximum wearing comfort: lightweight, ergonomic and flexible wearing options

The low weight of 49 g ensures increased wearing comfort. With this weight the HasciSE AR is one of the lightest and smallest wearables in its class. In addition, the HasciSE AR convinces with versatile wearing options, which include hand straps and hand cuffs with trigger or zipper. Ergonomic and adapted to each hand, the matching accessories are available in different sizes, as well as for right- and left-handers. The attachment of the scanner via standard pushbuttons and the consistent basic shape of the device offer decisive advantages: The accessories can be flexibly exchanged, independently of the scanner itself, and adapted to the needs and requirements of the user.
