Project Description

Backhand scanner with hand cuff

Backhand scanner HasciSE

HasciSE: ergonomic backhand scanner with industrial quality

In the fast-growing segment of logistics wearables, our HasciSE handheld barcode scanner is the optimal solution for small parts picking, where most work is “hands-free”. By attaching the HasciSE via robust snaps to any gloves, wrist straps, hand cuffs, zippers, etc., you are flexible in your choice of wearing options.

Product Information

HasciSE backhand scanner

The HasciSE backhand scanner features the following key data:

  • Logistics wearable: the lightest and smallest in its class
  • Pairing via BT-compatible short-range radio and ACD EasyToConnect 2.0
  • Various wearing options with rugged push buttons
  • Easy and fast scanning
  • Low error rates and safe handling
  • Long battery life (6,000 scans)
  • Scan triggering via finger switch, proximity sensor or scan button
  • Scan feedback: audible, haptic, and visual
  • Compatible with all Bluetooth-enabled devices with Bluetooth 4.0 and greater
  • Compatible ACD devices: M2Smart®SE mobile handheld computers, M270, MFT1x vehicle mount terminals, voice client with Android™ Industrial+
  • 3 years warranty
YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

Hasci backhandscanner
HasciSE ergonomic backhand scanner with industrial quality
HasciSE, practical fastening on retractable cord

Technical Data

All data at a glance

Device
  • Housing: ABS
  • Protection class: IP54
  • Dimensions: 56 x 45 x 14 mm (L x W x H)
  • Weight: approx. 45 g
  • Operating temperature: -20 °C to 50 °C
  • Charging temperature: 10 °C to 40 °C
  • Storage temperature: -20 °C to 20 °C
Barcode scanner
  • 2D scanner SE4770 (integrated into the housing)
  • optionally with the possibility of reading dot codes
Interfaces
  • BT-compatible short-range radio 4.0
Display
  • Status LED
Power supply
  • Rechargeable battery, lithium-polymer with 1.66 Wh (450 mAh/3.7 V)
  • Docking station
Special features
  • Scan triggering via configurable infrared proximity sensor, finger switch and button
  • Scan feedback via audio, vibration and visuals
  • Pairing via BT-compatible short-range radio (V4.0)
  • Easy to pair with ACD EasyToConnect 2.0 app
Compatibility with ACD devices
  • Mobile Handheld Computer M2Smart®SE
  • Mobile Handheld Computer M270
  • MFT1x series

Product equipment

Accessories

DS Hasci

DSHasciSE charging box (2-fold)

Housing with LED displays for charging two HasciSE.

DSHasciSE charging box (10-fach)

DSHasciSE charging box (10-fold)

Housing with LED displays for charging 10 HasciSE.

Hasci zipper round

HasciSE Zipper round

Round Zipper for attaching to the HasciSE mounting plate.

Hasci zipper square

HasciSE Zipper square

Square Zipper for attaching to the HasciSE mounting plate.

Hasci Mounting Plate

HasciSE mounting plate

Mounting plate for the HasciSE.

ACD hand strap for backhand scanner

ACD hand strap right incl. finger switch

ACD hand strap incl. finger switch for scanning, for fixing the HasciSE on the back of the hand
Available sizes: S, M/L

ACD hand cuff for backhand scanner

ACD hand cuff right incl. finger switch

ACD hand cuff incl. finger switch for scan triggering, for attaching the HasciSE to the back of the hand.
Available sizes: 7, 8, 9, 10

Similar products

Products that might also interest you

Downloads
Files for download
Back hand scanner HasciSE in goods receipt

HasciSE

The best ergonomic barcode palm scanner in industrial quality

ACD Group’s HasciSE backhand scanners are the next step in ergonomic, high-performance mobile logistics equipment. Our wearable scanning devices scan barcodes and offer faster order processing capabilities because of their easy mobility and usage. Much like wrist scanners, these devices offer more mobility and flexibility than traditional barcode scanners, which enhances overall productivity.

Lean more
Backhand vs. Wrist Barcode Scanners

Ring, backhand, wrist, and finger barcode scanners are all designed with wearability and functionality in mind. These three designs often share similar functions, such as hands-free barcode scanning, Bluetooth connectivity, and scan triggering via button, finger switch and proximity sensor; however, backhand scanners offer distinct advantages.

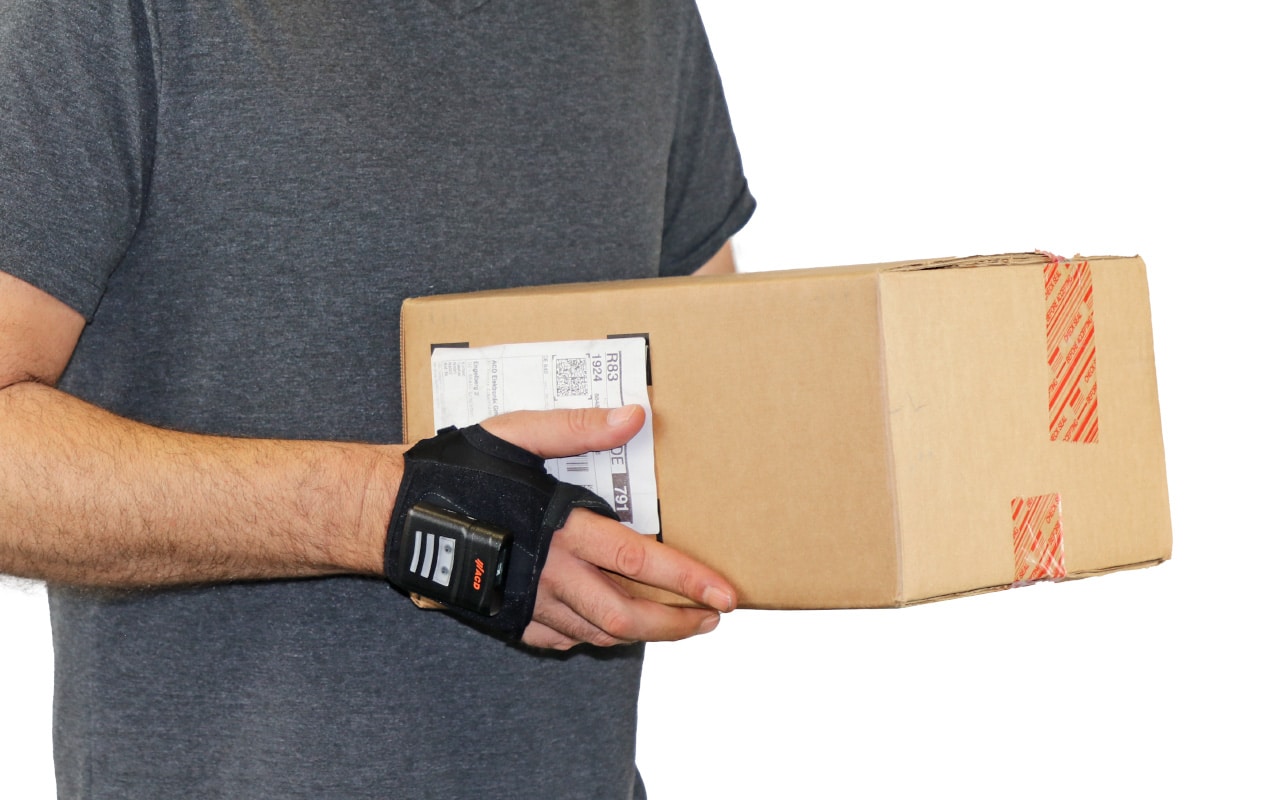

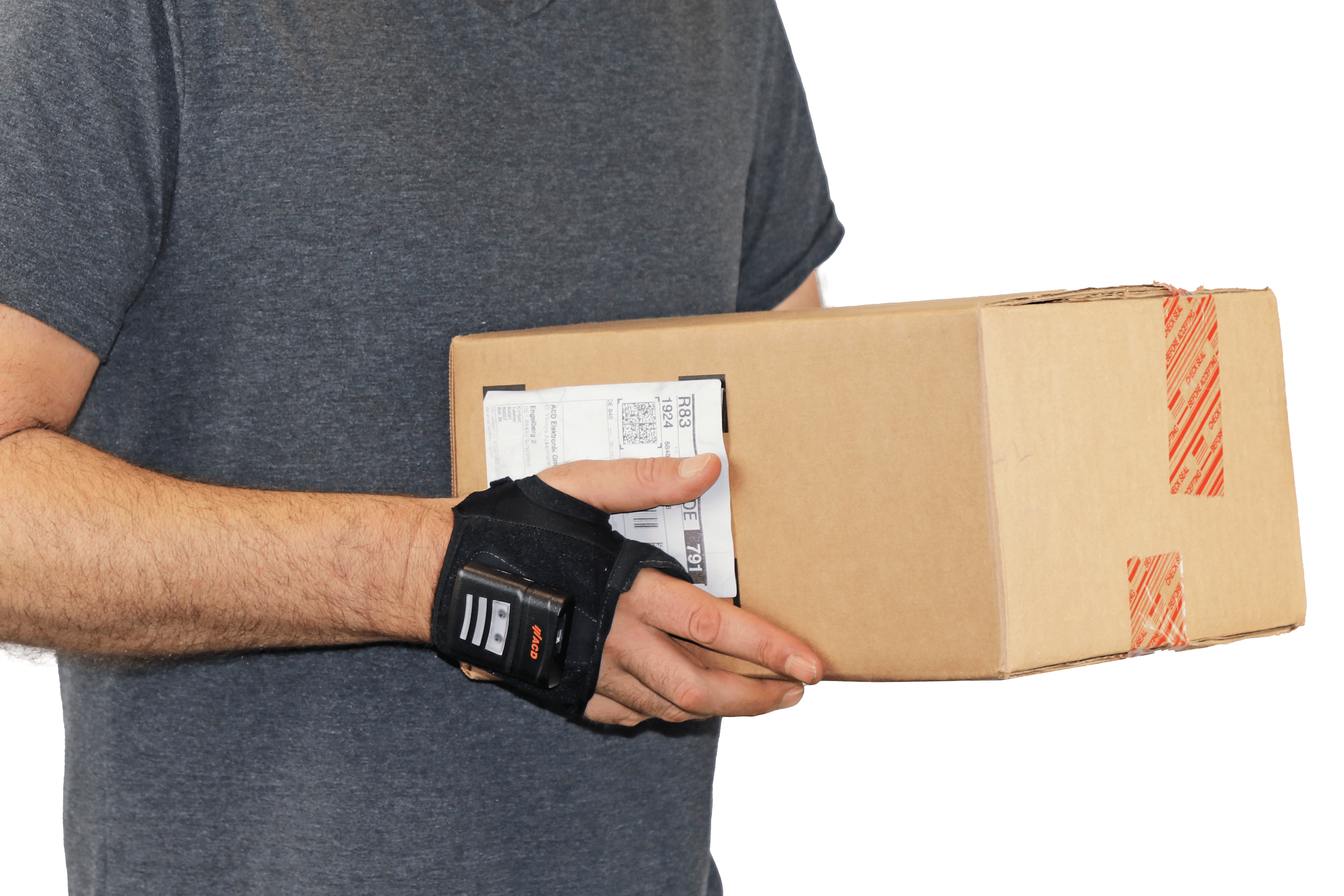

The HasciSE backhand scanner can be easily mounted onto the back of the hand with the available hand cuff or strap. This makes the devices easy to wear and use with minimal error, discomfort, or risk of repetitive stress injuries. Scan triggering is accomplished via a durable button and a configurable infrared proximity sensor. Other advantages of the HasciSE backhand scanner model include:

  • A compact design. Our backhand scanners fit in a glove on the back of the wearer’s hand without extending over their wrists or fingers to allow a full range of motion. This also allows wearers to naturally grip objects and use handheld tools. The robust snap fasteners ensure a secure connection to the glove.
  • Versatile attachment methods. In addition to the backhand glove attachment, users can attach the HasciSE scanner via strap to logistics equipment, or use a clip to attach to clothing.
  • A lightweight form. Every scanner is lightweight, which allows for easy wearing and minimal risk of muscle injury.
  • Easy setup and use. Our device controls and settings make setup, daily use, and reconfiguring easy for users. The HasciSE backhand scanner is compatible with Bluetooth 4.0 and higher devices, and it offers easy Bluetooth pairing via the ACD EasyToConnect 2.0 app.
  • The device can also integrate with other ACD logistics technology, including Mobile Handheld Computer, Vehicle Mount Terminals and the Voxter® Elite+ voice controlled picking system.
Applications for Backhand Scanners

Backhand scanners are ideal for any commercial or industrial application that requires users to take repetitive, fast scanning actions throughout the day. Some of the most popular applications for wearable scanners include:

  • Inventory management
  • Picking operations in warehouses and eCommerce fulfillment centers
  • Processing orders in receiving or shipping departments
  • Replenishment processes

HasciSE backhand scanners are built for use in a wide range of industries including warehouse management, manufacturing, fulfillment centers, industrial facilities, and more.

Backhand Scanners From ACD Group

Wearable devices are an essential technology for inventory and order fulfillment processes. While many handheld scanners also offer wireless communication, wearable designs such as wrist scanners offer better utility and productivity. Our HasciSE backhand scanners are even more advantageous because of their small, lightweight design, which allows for faster processing and a full range of motion for wearers.

If you’re looking for wearable scanning devices that offer Bluetooth connectivity and better process management, contact us today to learn more about our devices’ designs and capabilities.

Less
