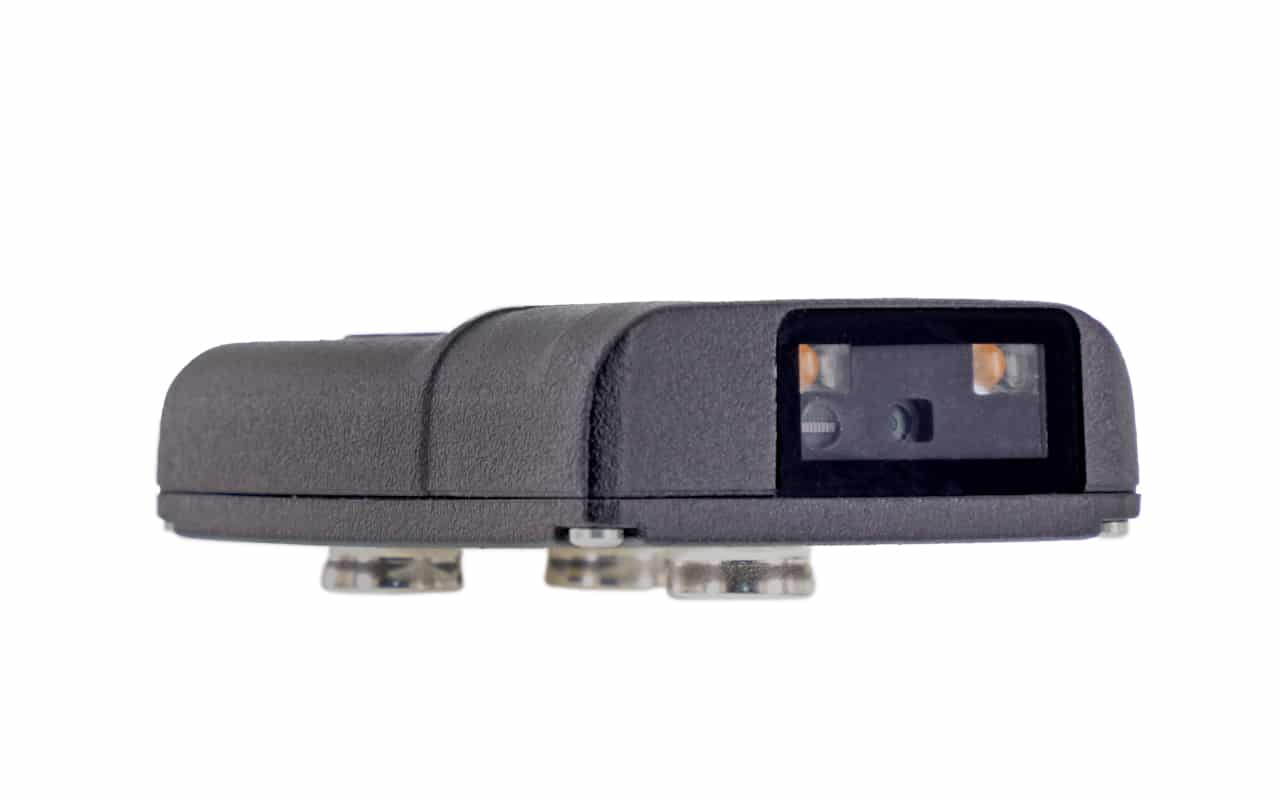

Backhand scanner HasciSE MR

HasciSE MR: ergonomic Bluetooth scanner with a wide range of applications in industrial quality

In the fast-growing segment of logistics wearables, our HasciSE MR handheld barcode scanner with a scan range of 5 cm to 4.4 m is the most efficient and versatile solution for all warehouse work, where mostly “hands-free” work is used. It impresses with its low weight, a wide range of applications and industrial grade processing.

Product Information

HasciSE MR backhand scanner

The HasciSE MR backhand scanner features the following key data:

  • Logistics wearable: one of the lightest and smallest in its class
  • Fast pairing via BT-compatible short-range radio and ACD EasyToConnect 2.0/ACD HasciDataService
  • Various wearing options due to sturdy snap fasteners
  • High-performance midrange imager with a scanning range of 5 cm to 4.4 m
  • Low error rates and safe handling
  • Long battery life (9,000 scans)
  • Scan triggering via finger switch or scan button
  • Scan feedback: audible, haptic, and visual
  • Compatible with all Bluetooth-enabled devices with Bluetooth 4.0 and higher
  • Compatible ACD devices: mobile handheld computers M2Smart®SE, M270SE, vehicle mount terminals MFT1xSE, voice client with Android™ Industrial+
YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you accept YouTube's privacy policy.
Learn more

Load video

Hasci backhandscanner
Backhand scanner HasciSE simple pairing
HasciSE, practical fastening on retractable cord

Technical Data

All data at a glance

Device
  • Housing: ABS
  • Protection class: IP54
  • Dimensions: 58 x 45 x 16 mm (L x W x H)
  • Weight: approx. 52 g
  • Operating temperature: -20 °C to 50 °C
  • Charging temperature: 10 °C to 40 °C
  • Storage temperature: -20 °C to 20 °C
Barcode scanner
  • 2D midrange Imager SE4750MR (integrated into the housing)
  • Reading range from approx. 5 cm to 4.4 m
  • Optionally with the possibility of reading dot codes
Interfaces
  • BT-compatible short-range radio 4.0
Display
  • Status LED
Power supply
  • Rechargeable battery, lithium-polymer with 2.405 Wh (650 mAh/3.7 V)
  • Docking station
Special features
  • Scan triggering via finger switch and button
  • Scan feedback via audio, vibration and visuals
  • Pairing via BT-compatible short-range radio (V4.0)
  • Easy to pair with ACD EasyToConnect 2.0/ACD HasciDataService
Compatibility with ACD devices
  • Mobile Handheld Computer M2Smart®SE
  • Mobile Handheld Computer M270SE
  • Vehicle mount terminals MFT1xSE series

Product equipment

Accessories

DS Hasci

DSHasciSE charging box (2-fold)

Housing with LED displays for charging two HasciSE.

DSHasciSE charging box (10-fach)

DSHasciSE charging box (10-fold)

Housing with LED displays for charging 10 HasciSE.

Hasci zipper round

HasciSE Zipper round

Round zipper for attachment to the HasciSE mounting plates.

Hasci zipper square

HasciSE Zipper square

Square Zipper for attaching to the HasciSE mounting plates.

2022 11 Aufnahmeplatte 4 e1669638486242

HasciSE MR mounting plate

Mounting plate for the HasciSE MR for attachment to the zippers.

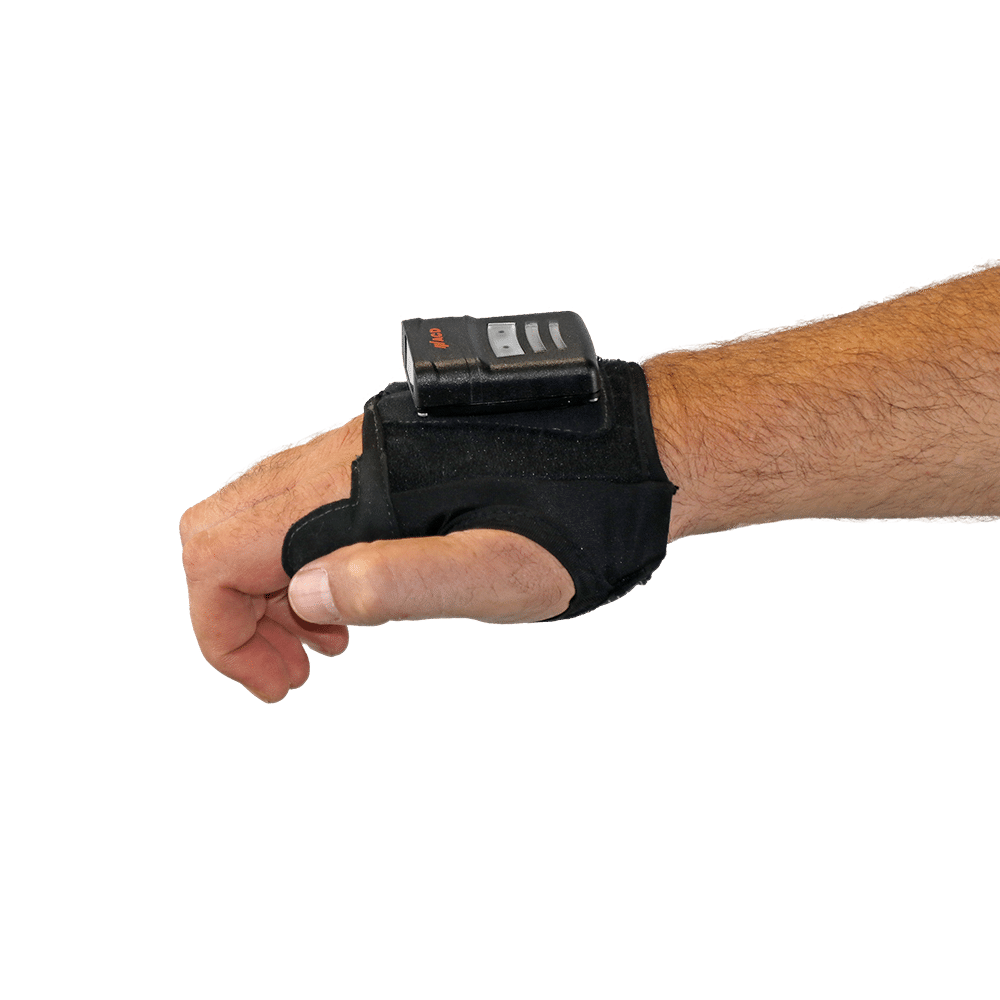

ACD hand strap for backhand scanner

ACD hand strap right incl. finger switch

ACD hand strap incl. finger switch for scanning, for fixing the HasciSE on the back of the hand
Available sizes: S, M/L

ACD hand cuff for backhand scanner

ACD hand cuff right incl. finger switch

ACD hand cuff incl. finger switch for scan triggering, for attaching the HasciSE to the back of the hand.
Available sizes: 7, 8, 9, 10

Backhand scanner HasciSE hand cuff left

ACD hand cuff left incl. finger switch

ACD hand cuff incl. finger switch for scan triggering, for attaching the HasciSE to the back of the hand.
Available sizes: 7, 8, 9, 10

Similar products

Products that might also interest you

2022 11 HasciSE MR 6 1

HasciSE MR

The HasciSE MR: Wide range of applications for efficient work

Like the other two HasciSE variants, the HasciSE MR can be comfortably attached to the back of the hand. It convinces with its low weight of only 52 g and with maximum freedom of movement for the user. Due to the large scanning range of 5 cm up to 4.4 m, it is able to cover a wide range of applications. By using the HasciSE MR, it is possible to perform both close-range and mid-range scans without the user having to change position. Particularly in order picking and order processing, this significantly accelerates throughput times and makes work easier for employees. The HasciSE MR is therefore the epitome of efficient and structured work in the warehouse where a scanner is required.

Hands-free scanning and a maximum of comfort

Compared to conventional scanners used in the warehouse, the advantages of the HasciSE MR are obvious, or rather, on the back of the hand. By attaching the scanner via a hand cuff or hand strap, coupled with the light weight of only 52 g, the user is able to use both hands while processing a job without having to pick up and put down a scanner. During the design process, increased attention was paid to ensuring that the HasciSE MR would perform reliably and smoothly even in harsh work environments. The result is a compact and robust backhand scanner that does not interfere with other work. The HasciSE MR can therefore be worn on the back of the hand all the time and is immediately available when it is needed. It is the ideal companion in the warehouse.

Easy coupling and high quality workmanship

Equipped with a high protection class and the usual fast and intuitive operating options, including acoustic, visual and haptic scan feedback, the HasciSE MR has been specially adapted to the requirements of work in the warehouse. With the matching app ACD EasyToConnect 2.0 for AndroidTM, Windows® and IGEL OS, the barcode scanner can be easily paired with a remote device via BT-compatible short-range radio for secure data transmission. Alternatively, the ACD HasciDataService app can be used to quickly pair with the remote device and communicate via intents. The ability to pair using these two services eliminates the need for time-consuming setup of each device.

The HasciSE family of ACD Elektronik GmbH – consistent accessories for maximum flexibility

All variants of the HasciSE from ACD Elektronik GmbH impress with their versatile carrying options, which include hand loops and hand gauntlets with finger release or extendable holding plates. The hand straps and gauntlets are ergonomically designed and are available in different sizes for both left- and right-handed users. The scanner is attached to all devices in the HasciSE family via robust standard push buttons and all devices have the same basic shape. Thus, the accessories as well as the back of the hand scanner can be exchanged independently and thus adapted to the needs and requirements of the wearer and the current work process.
