Wired HMI device M2Smart HMI10 Wired for functionally safe machine operation with 10-inch touch display and Android Industrial+

M2Smart® HMI10

M2Smart® HMI10 Wired

A high level of safety is required when operating industrial systems and machines. Emergency stop and enabling switches are indispensable functions in emergency situations. The wired M2Smart® HMI10 offers functional safety through these components. The M2Smart® HMI10 Wired is an optimal and robust solution for industry.

Product Information

M2Smart® HMI10 Wired

With the M2Smart® HMI10 Wired it is possible to meet the high requirements in terms of safety equipment of a machine. The obligatory emergency stop button, as well as a three-stage enabling switch, are mounted directly on the mobile HMI device and can be triggered immediately and easily. The 10.1 inch display has an optimal size and offers plenty space for information.
The secure Android™ Industrial+ operating system stands for high data security and easy handling. No data is passed on to third parties.

Some key facts

  • Reliable operation even in safety-critical areas
  • Side-mounted emergency stop and handle incl. three-stage enabling switch on the rear of the device
  • Transmission of all non-safety data such as operating and visualization functions via WiFi
  • High security and intuitive operability through Android™ Industrial+ environment
  • Customized modules such as joysticks, hand wheels, etc.
  • Comfortable screen size due to 10.1 inch display
  • Capacitive touch screen for easy handling
  • Diverse ACD software apps such as ACD KioskMode and simultaneous use of other Android™ apps
Controlling an AGV with the M2Smart HMI10 Wired

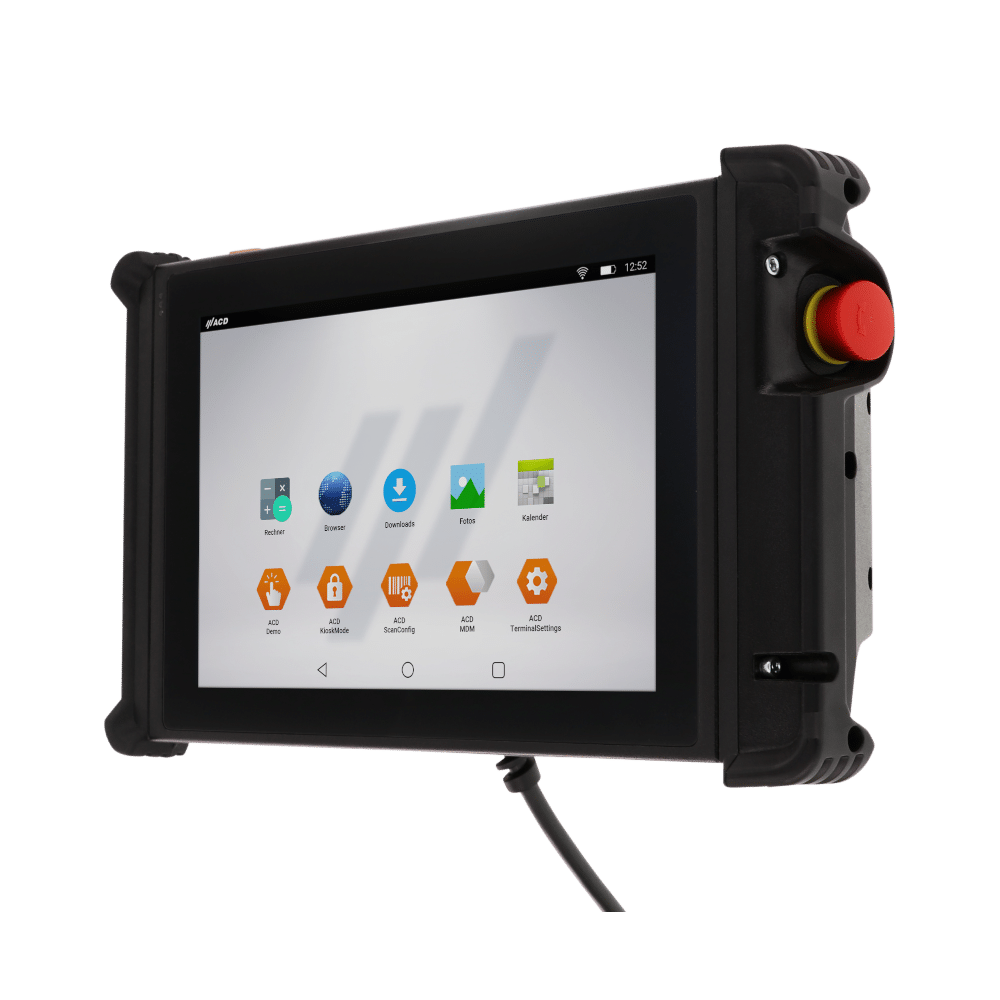

Front view of the mobile and wired M2Smart HMI10 Wired
The M2Smart HMI10 Wired used in production
m2smart HMI10 Wired backview mobile HMI devices

Technical Data

All data at a glance

Display
  • Type: IPS TFT color display
  • Size: 10.1“ (16:10)
  • Resolution: 1280 x 800 pixels
  • Brightness: 500 cd/m2
  • Touch screen: Capacitive, Anti-glare hard coating (3H)
  • Backlight: LED backlight
  • Display: Three status LEDs
Safety elements
  • Enabling switch/Emergency stop button: Performance level PLe according to ISO 13849 achievable
  • Emergency stop B10d: 250,000
  • Enabling switch B10d: 2,000,000 (24 V AC/DC, 100 mA), 100,000 (rated load)
Control elements
  • Emergency stop button: Emergency stop button, 2-channel, 2 NC contacts (NC)
  • Enabling switch (optional): Three-stage enabling switch, 2-channel, 2 NO contacts (NO), suitable for right- and left-handed users
  • Buttons: On/off button, one side button (freely configurable)
Dimensions, Weight
  • Dimensions with enabling switch:
    196 x 333 x 93 mm (L x W x H)
  • Weight with enabling switch, without cable:
    Ca. 1650 g
  • Dimensions without enabling switch:
    196 x 333 x 64 mm (L x W x H)
  • Weight without enabling switch, without cable:
    Ca. 1450 g
Interfaces
  • Communication of visualization and operating data: WiFi according to IEEE802.11a/b/g/n/ac/d/h/e/i/r/k/w/v (2.4 GHz/5 GHz) incl. BT-compatible short-range radio 5.0
  • Communication of safety data: Wired (emergency stop and enabling function)
  • Connection cable: Length: 5 m or 10 m
  • Outer sheath: PUR (for version with enabling switch), TPE (for version without enabling switch)
  • NFC reader (optional): Reader/Writer mode, Peer to Peer mode, Card emulation
  • NFC protocols: ISO14443A/B, ISO15693, MIFARE/DESFire, Sony FeliCa
  • Loudspeaker: Integrated loudspeaker
  • USB: USB-C for data transfer
  • Camera (optional): 5 MP autofocus camera with illumination
Power supply
  • Power supply: 15 – 24 V DC (+/- 15 %), 20 W
  • Battery (optional): Quick-change battery, Li-Ion, 22.8 Wh (6,000 mAh/3.8 V), Battery change during operation (ca. ten seconds buffering)
Core
  • CPU: NXP® i.MX8M Mini, 4x Cortex A53 (4x 1.8 GHz) and 1x Cortex M4 (1x 400 MHz)
  • Memory: 16 GB Flash, 4 GB RAM (optional 32 GB Flash available)
General information
  • Operating system: AndroidTM Industrial+
  • Housing: ABS/PC
  • Protection class: IP54
  • Operating temperature: -20 °C to 50 °C
  • Storage temperature: -20 °C to 60 °C
  • Charging temperature: 5 °C to 35 °C
  • Rel. humidity: 5 % to 90 %, non-condensing (M2Zustimm10: 45 % to 85 %, non-condensing)
  • Permissible air pressure: Up to 2,000 m above sea level (operation, storage, transportation)
  • Optional: Various modules such as handwheels, additional buttons on request
  • Certification: CE
  • System components: M2Smart® HMI Access Point (optional)

Technical Data

M2Smart® HMI Access Point

General information
  • Power supply: Via Ethernet (PoE) or 3-pin plug
  • Power supply Ethernet (PoE): 37 – 57 V
  • Power supply 3-pin plug: 19 – 36 V, 1.7 W
  • Housing: Plastic
  • Protection class: IP66, IP67
  • Operating temperature: -40 °C to 65 °C
  • Storage temperature: -40 °C to 85 °C
  • Certification: CE, UL, ATEX, FCC, IC
M2Smart HMI access point for ensuring a stable wireless connection
Interfaces
  • Connections: RJ45, 3-pin screw connection
  • Communication: BT-compatible short-range radio V2.1, WiFi
  • Operating mode: Access Point
  • Pairing: Connection configuration and pairing via AndroidTM settings
Dimensions, Weight
  • Dimensions: 68 x 75 mm (W x H), Height above mounting surface: 42 mm
  • Weight: 85 g

Product Equipment

Accessories

M2SmartHMI10 PassiveHalterung

M2Smart® HMI10 w – Passive Mount SE

Passive wall mount without charging option
• Operating temperature: -20 °C to 50 °C
• Device dimensions: 124 x 270 x 112 mm (L x W x H)
• Weight: 500 g
• Special feature: Upgrade to active mount possible

Kapazitiver Touchstift

Capacitive touch pen

Capacitive touch pen for easy operation of the M2Smart® HMI10 Wired
• Length: Ca. 11 cm
• Diameter: Ca. 0.6 cm

M2Smart® display protection film 10.1 Inch / low reflection

Display protection film with anti-reflective coating
• Material: Extremely robust polymer composite
• Technology: Anti fingerprint
• Surface: > 3H surface hardness

Displayschutzfolie M2Smart 101Zoll

M2Smart® display protection film 10.1 Inch

AirGlass display protection film
• Technology: Anti fingerprint
• Surface: 9H scratch resistance
• Impact resistance: IK06

SIMILAR PRODUCTS

Products that might also interest you

Mobile, and modular M2Smart HMI with 10 inch for operating an AGV

Mobile HMI with 10 inch for smart machine operation

M2Smart® HMI10 wired HMI device with secure operating system

The M2Smart® HMI10 Wired is equipped with an emergency stop, enabling switch and the safe Android™ Industrial+ operating system. The new wired HMI device combines robustness, functionality and safety. Thanks to the connection cable for power supply and transmission of safety data, uninterrupted work is possible.

Secure Android™ Industrial+ operating system and rugged design

The connection cable of the M2Smart® ensures the power supply and at the same time the transmission of the safety data and ensures smooth working without any interruptions. In contrast to conventional Android™ versions, the Android™ Industrial+ operating system is characterised by a particularly high level of system security, as no data is leaked to third parties. Another unique feature is the long-term availability and lifelong support, with a familiar user interface.

The HMI device convinces with sophisticated safety components, such as an integrated emergency stop button and a three-stage enabling button on the handle. The emergency stop module and the ergonomic enabling switch can be changed flexibly by the user. Due to the modular concept of the M2Smart® HMI10 Wired, there are no limits for the user and versatile application possibilities are given. Customer-specific adaptations can be developed by ACD Elektronik GmbH at any time.
